SKU: SY1.1/4TF/VA228-SKF

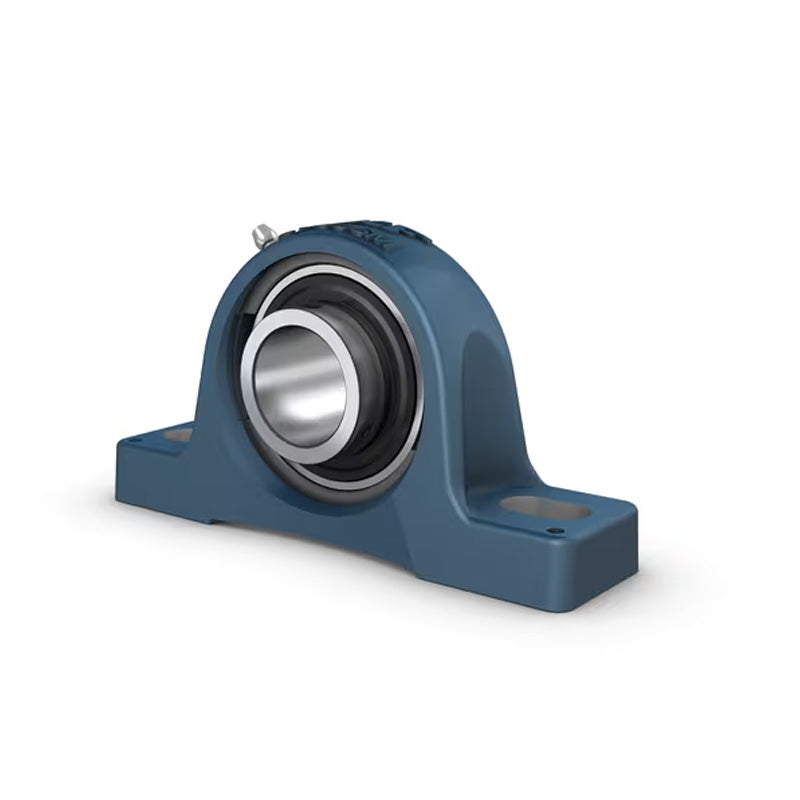

SKF SY11/4TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 1-1/4 inch
SKF SY11/4TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 1-1/4 inch
Regular price
€306,26
ex VAT
Regular price
Sale price
€306,26
ex VAT
In stock
Price Break
10+
€233,25
19+
€220,14
29+
€217,52
39+
€214,90
49+
€212,28
74+
€209,66
99+
€196,56
199+
€193,94
249+
€191,32
499+
€188,69
999+
€183,45
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| A | 45mm |
| B | 42.9mm |
| H | 93mm |
| H1 | 47.6mm |
| H2 | 19mm |
| J | 126mm |
| L | 160mm |
| N | 21mm |
| N1 | 14mm |
| G | 12mm |
| S1 | 25.4mm |
| Dynamic load C | 25.5 kN |
| Static load Co | 15.3 kN |
| Weight | 1.57 kg |
