SKU: SY20TF/VA228-SKF

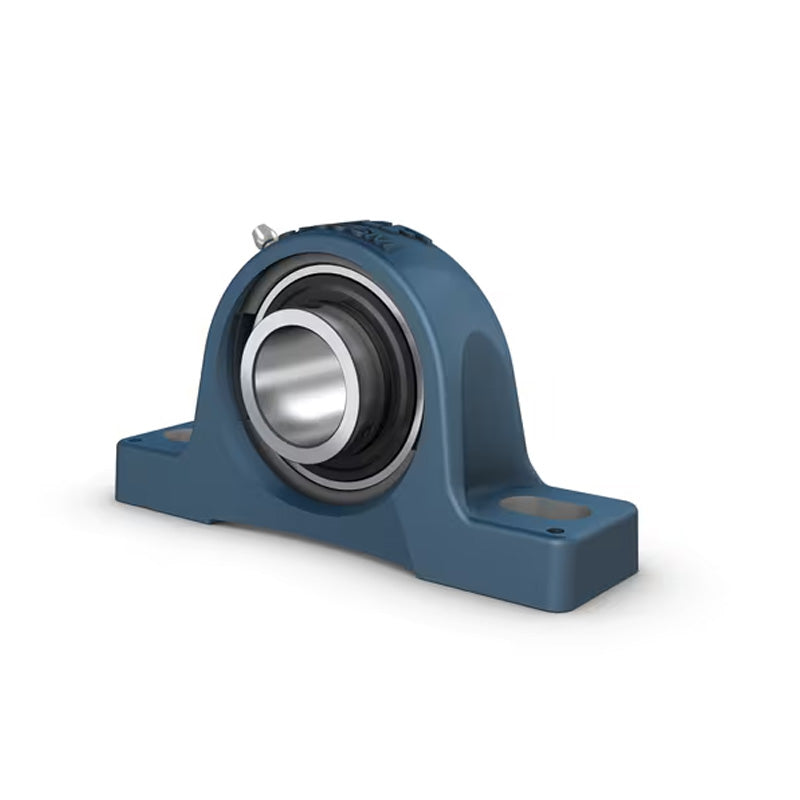

SKF SY20TFVA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Metric Shaft 20mm
SKF SY20TFVA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Metric Shaft 20mm
Regular price
€227,86
ex VAT
Regular price
Sale price
€227,86
ex VAT
In stock
Price Break
10+
€173,54
19+
€163,79
29+
€161,84
39+
€159,89
49+
€157,94
74+
€155,99
99+
€146,24
199+
€144,29
249+
€142,34
499+
€140,39
999+
€136,49
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 20mm |
|---|---|
| A | 32mm |
| B | 31mm |
| H | 64mm |
| H1 | 33.3mm |
| H2 | 14mm |
| J | 97mm |
| L | 127mm |
| N | 20.5mm |
| N1 | 11.5mm |
| G | 10mm |
| S1 | 18.3mm |
| Dynamic load C | 12.7 kN |
| Static load Co | 6.55 kN |
| Weight | 0.57 kg |
