SKU: SY35TF/VA201-SKF

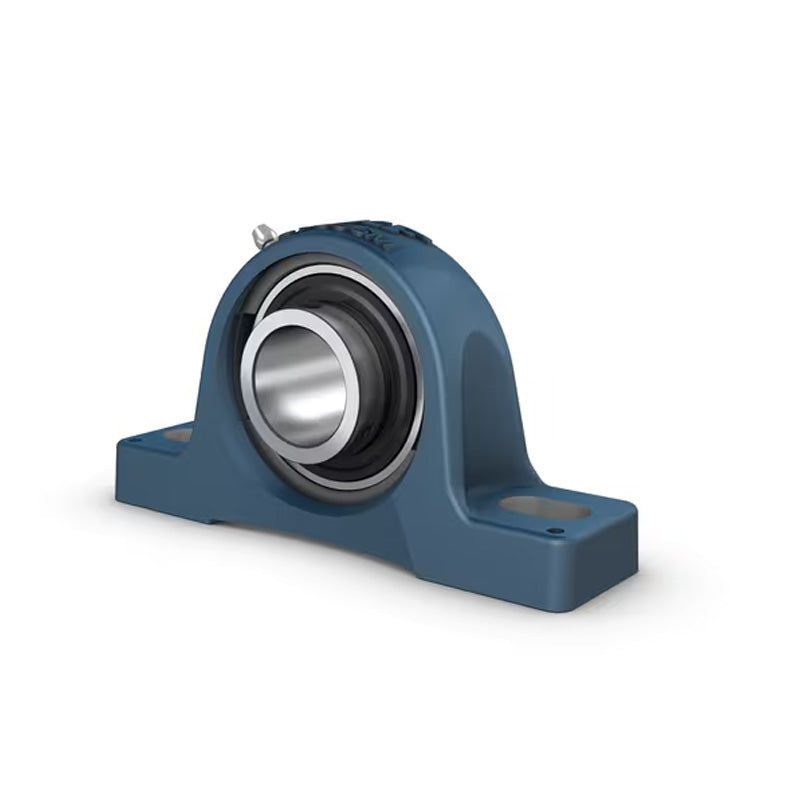

SKF SY35TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 35mm
SKF SY35TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 35mm
Regular price
€263,20
ex VAT
Regular price
Sale price
€263,20
ex VAT
In stock
Price Break
10+
€200,45
19+
€189,19
29+
€186,94
39+
€184,69
49+
€182,43
74+
€180,18
99+
€168,92
199+
€166,67
249+
€164,42
499+
€162,16
999+
€157,66
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 35mm |
|---|---|
| A | 45mm |
| B | 42.9mm |
| H | 93mm |
| H1 | 47.6mm |
| H2 | 19mm |
| J | 126mm |
| L | 160mm |
| N | 21mm |
| N1 | 14mm |
| G | 12mm |
| S1 | 25.4mm |
| Dynamic load C | 25.5 kN |
| Static load Co | 15.3 kN |
| Weight | 1.46 kg |
