SKU: SY35TF/VA228-SKF

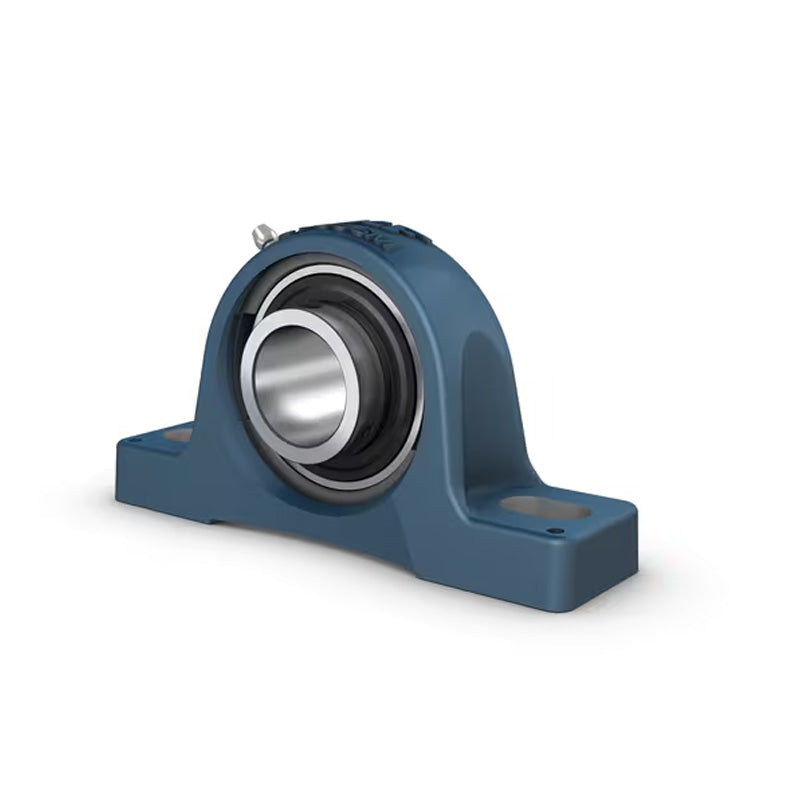

SKF SY35TFVA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Metric Shaft 35mm
SKF SY35TFVA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Metric Shaft 35mm
Regular price
€336,25
ex VAT
Regular price
Sale price
€336,25
ex VAT
In stock
Price Break
10+
€256,09
19+
€241,70
29+
€238,82
39+
€235,95
49+
€233,07
74+
€230,19
99+
€215,81
199+
€212,93
249+
€210,05
499+
€207,17
999+
€201,42
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 35mm |
|---|---|
| A | 45mm |
| B | 42.9mm |
| H | 93mm |
| H1 | 47.6mm |
| H2 | 19mm |
| J | 126mm |
| L | 160mm |
| N | 21mm |
| N1 | 14mm |
| G | 12mm |
| S1 | 25.4mm |
| Dynamic load C | 25.5 kN |
| Static load Co | 15.3 kN |
| Weight | 1.46 kg |
