SKU: SY40TF/VA228-SKF

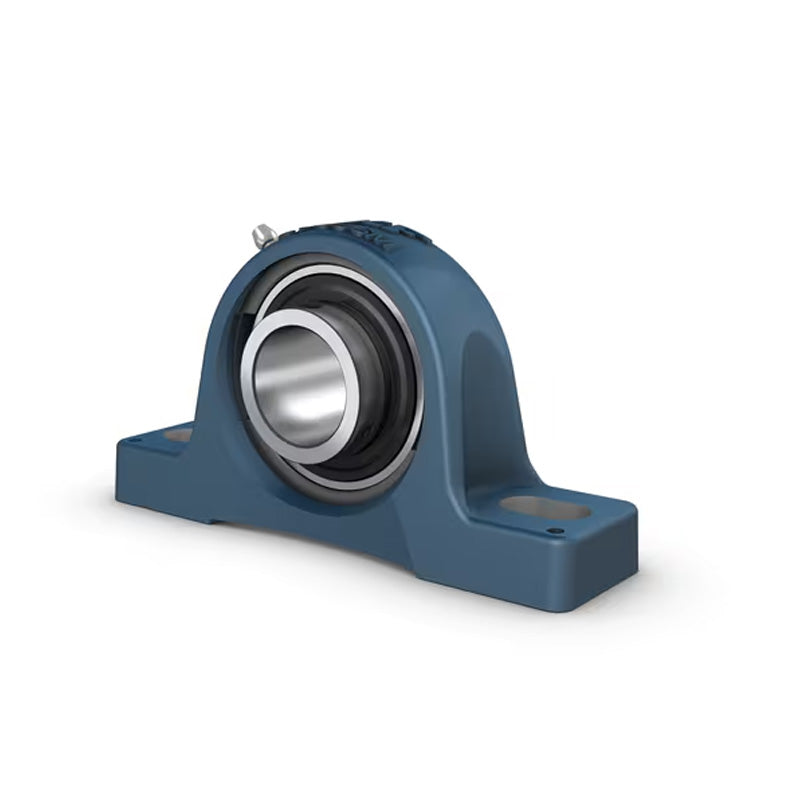

SKF SY40TFVA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Metric Shaft 40mm
SKF SY40TFVA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Metric Shaft 40mm
Regular price
€346,00
ex VAT
Regular price
Sale price
€346,00
ex VAT
In stock
Price Break
10+
€263,51
19+
€248,70
29+
€245,74
39+
€242,78
49+
€239,82
74+
€236,86
99+
€222,06
199+
€219,10
249+
€216,14
499+
€213,17
999+
€207,25
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 40mm |
|---|---|
| A | 48mm |
| B | 49.2mm |
| H | 99mm |
| H1 | 49.2mm |
| H2 | 19mm |
| J | 135.5mm |
| L | 175mm |
| N | 24.5mm |
| N1 | 14mm |
| G | 12mm |
| S1 | 30.2mm |
| Dynamic load C | 30.7 kN |
| Static load Co | 19 kN |
| Weight | 1.8 kg |
