SKU: SY45TF/VA228-SKF

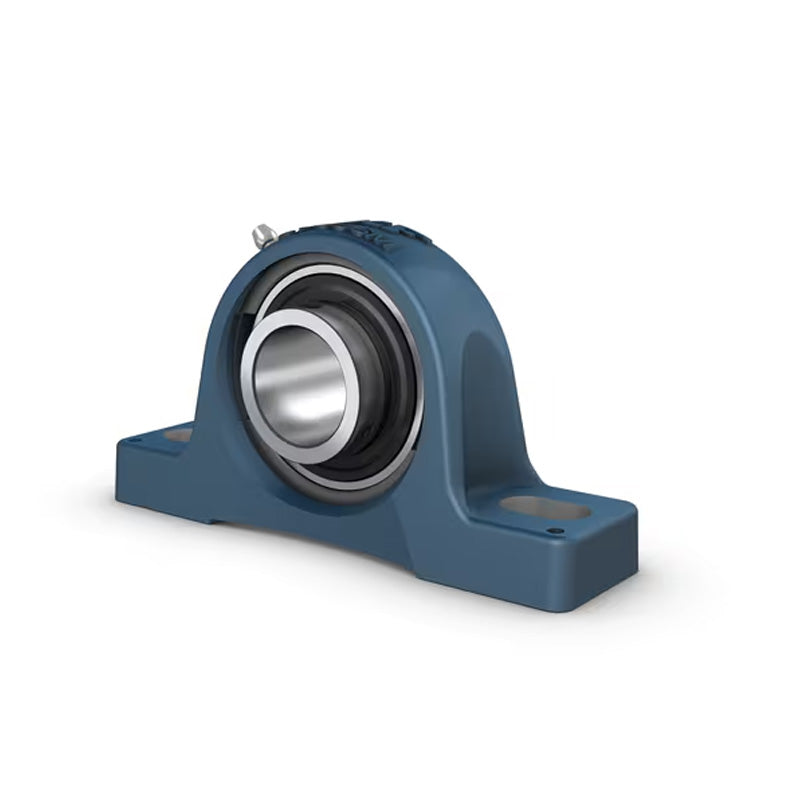

SKF SY45TFVA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Metric Shaft 45mm
SKF SY45TFVA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Metric Shaft 45mm
Regular price
€385,51
ex VAT
Regular price
Sale price
€385,51
ex VAT
In stock
Price Break
10+
€343,10
19+
€323,83
29+
€319,97
39+
€316,12
49+
€312,26
74+
€308,41
99+
€289,13
199+
€285,28
249+
€281,42
499+
€277,57
999+
€269,86
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 45mm |
|---|---|
| A | 48mm |
| B | 49.2mm |
| H | 107mm |
| H1 | 54mm |
| H2 | 20.6mm |
| J | 143.5mm |
| L | 187mm |
| N | 22.5mm |
| N1 | 14mm |
| G | 12mm |
| S1 | 30.2mm |
| Dynamic load C | 33.2 kN |
| Static load Co | 21.6 kN |
| Weight | 2.3 kg |
