SKU: SYF50TF-SKF

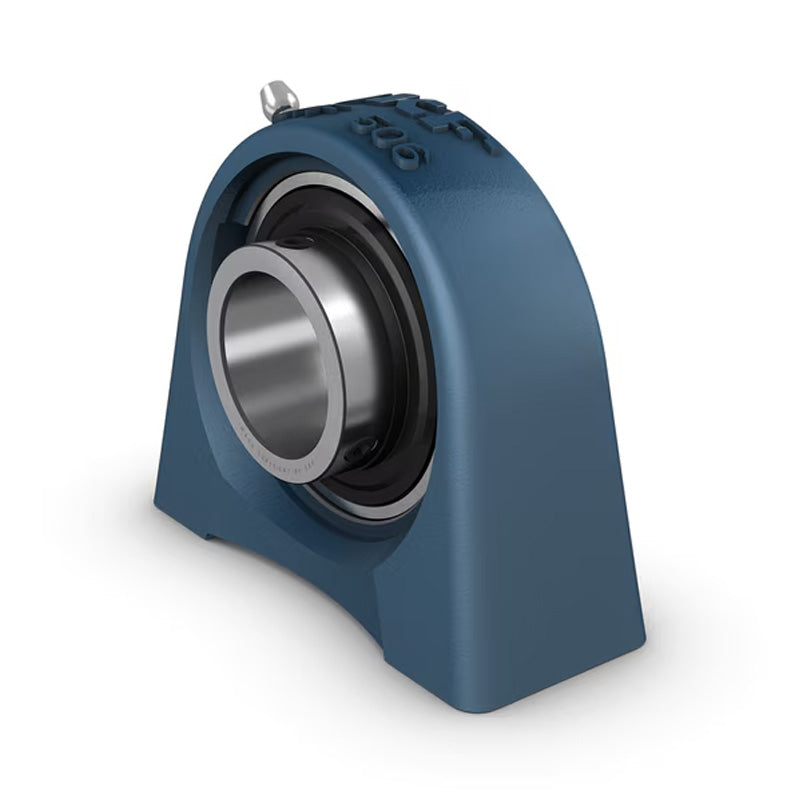

SKF SYF50TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 50mm
SKF SYF50TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 50mm
Regular price
€123,25
ex VAT
Regular price
Sale price
€123,25
ex VAT
In stock
Price Break
10+
€93,87
20+
€88,60
30+
€87,54
40+
€86,49
50+
€85,43
75+
€84,38
100+
€79,11
200+
€78,05
250+
€77,00
500+
€75,94
1000+
€73,83
Description
Description
|
SKF Y-bearing Plummer Block Units with a Cast Housing: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has a shortened base that contains two threaded holes in the support base. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Style:
- SYF
- Bolt Hole Centres:
- 101.6mm
Technical
Technical
| d | 50mm |
|---|---|
| A | 54mm |
| A1 | 34mm |
| B | 51.6mm |
| H | 114.5mm |
| H1 | 57.2mm |
| J | 101.6mm |
| L | 135mm |
| G | M16 |
| G1 | 25.5mm |
| s1 | 32.6mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 4000 rpm |
| Weight | 2.2 kg |
| Housing | SYF510 |
| Insert | YAR210-2F |
