SKU: T1030-30G-RHP

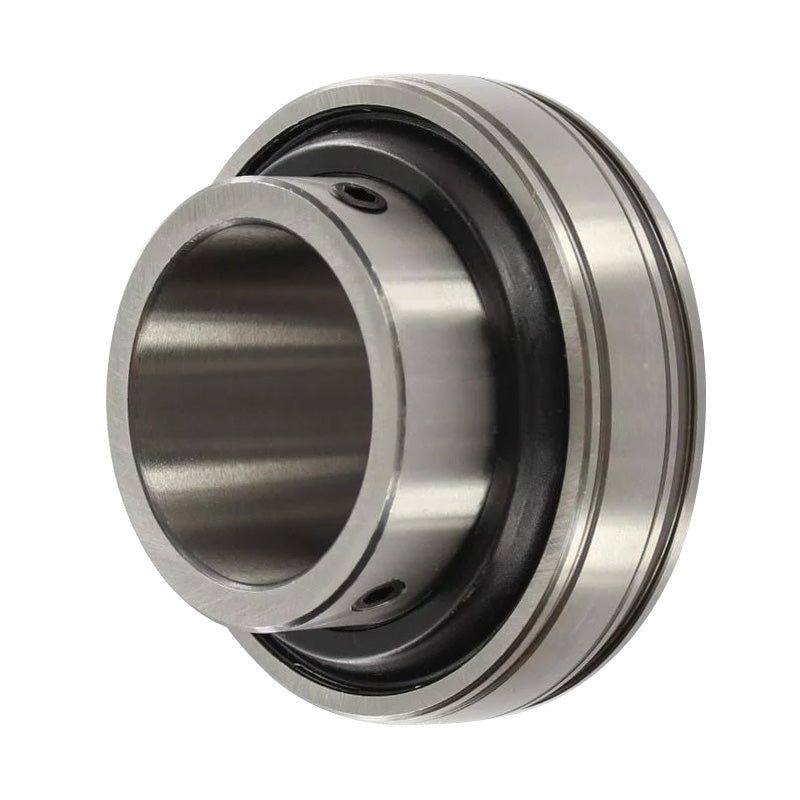

RHP T1030-30G Triple Seal Bearing Insert 30mm Bore Grub Screw Type 62mm Outside Diameter
RHP T1030-30G Triple Seal Bearing Insert 30mm Bore Grub Screw Type 62mm Outside Diameter
Regular price
€38,32
ex VAT
Regular price
Sale price
€38,32
ex VAT
In stock
Price Break
10+
€29,18
20+
€27,54
30+
€27,22
40+
€26,89
50+
€26,56
75+
€26,23
100+
€24,59
200+
€24,27
250+
€23,94
500+
€23,61
1000+
€22,95
Description
Description
|
RHP T1000G Series Triple Sealed Bearing Insert: This insert type is a full width bearing with a spherical outer diameter and is fitted with a triple seal assembly on both sides of the bearing to prevent moisture and dust / particle ingress, they are particularly suited to agricultural applications where harsh weather conditions and environments need to be tolerated for longer periods between maintenance. They have the benefit of being re-lubricatable after installation. There are 2 grub screws set 120 degrees apart to allow tightening against the shaft after installation. Benefits: Cost effective solution, re-lubricatable, grub screw fixing, Triple sealed |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Style:
- T1030
Technical
Technical
| Bore | 30mm |
|---|---|
| D | 62mm |
| C | 18mm |
| B | 38.1mm |
| s | 15.93mm |
| d1 | 40mm |
| M | 5.85mm |
| r | 1mm |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 850 rpm |
| Weight | 0.37 kg |
