SKU: TA.3530.Z-EU

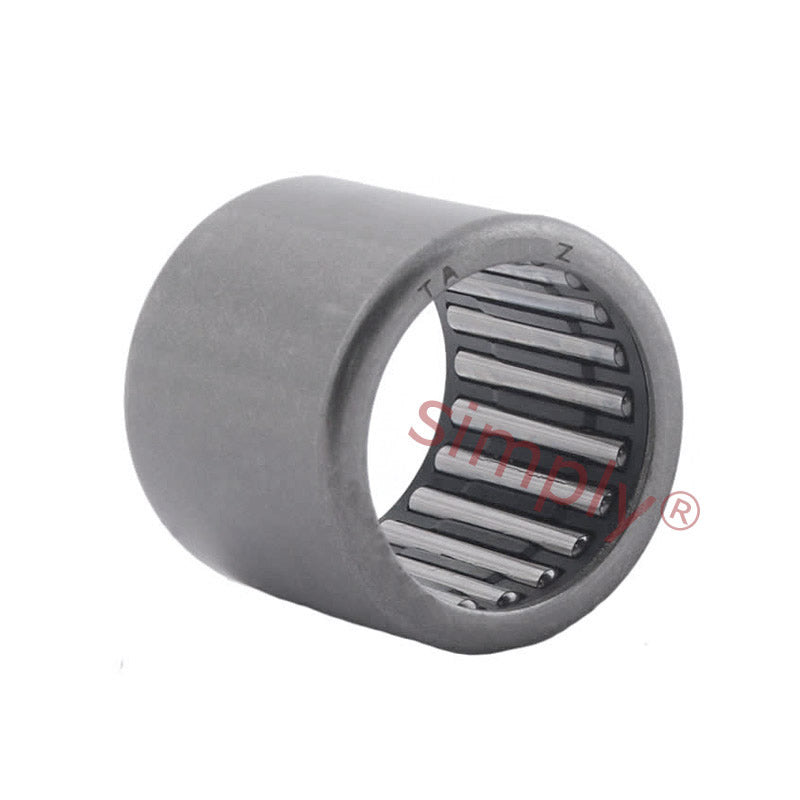

Premier Budget TA3530Z Needle Roller Bearing Open End Type 35x45x30mm
Premier Budget TA3530Z Needle Roller Bearing Open End Type 35x45x30mm
Regular price
€11,23
ex VAT
Regular price
Sale price
€11,23
ex VAT
Equivalent to: HMK3530
In stock
Price Break
10+
€8,56
19+
€8,08
29+
€7,98
39+
€7,88
49+
€7,79
74+
€7,69
99+
€7,21
199+
€7,11
249+
€7,02
499+
€6,92
999+
€6,73
Share this product
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK3530
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 45mm
- Width:
- 30mm
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 45mm |
| C | 30mm |
| Dynamic load | 40600N |
| Static load | 72600N |
| Inner race | IRT3030 |
| Weight | 97g |
