SKU: TPR.SS.5X40MM

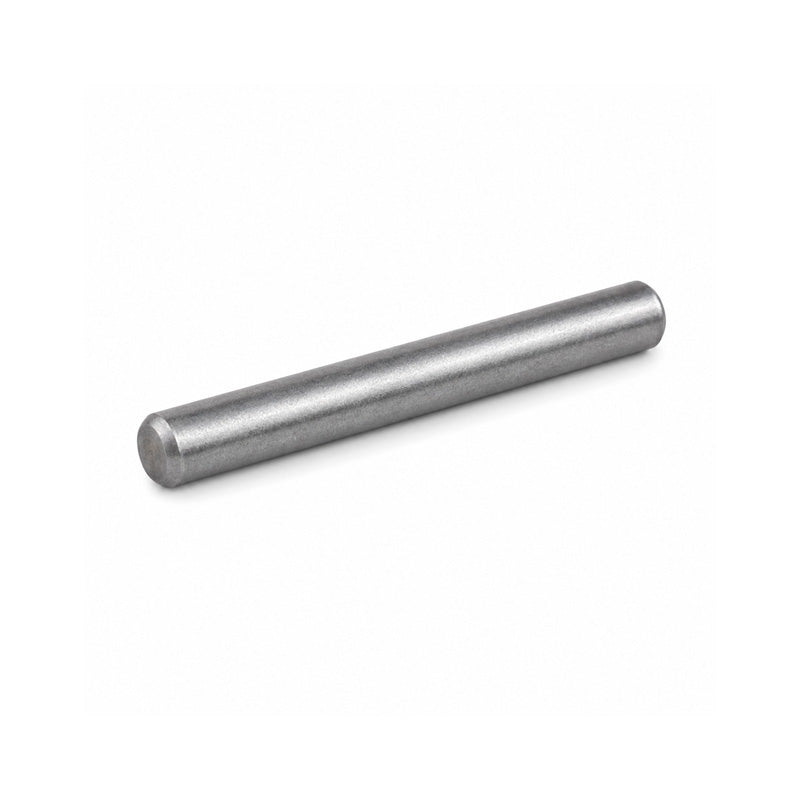

Metric Stainless Steel (A1-303) Solid Taper Pin 5x40mm

Name: Metric Stainless Steel (A1-303) Solid Taper Pin 5x40mm
Brand: Simply Taper Pins
SKU: TPR.SS.5X40MM
Price: 5.59 EUR
Availability: InStock

€5,59 ex VAT

Sale Sold out

In stock

Price Break

5+ €4,73

10+ €4,54

20+ €4,45

50+ €4,30

100+ €4,21

500+ €3,97

1000+ €3,35

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Solid Taper Pins: These pins are often used to position and secure mechanical components just by using dry friction. The dry friction element makes taper pins economical and best of all, easy to install.
Benefits: Quick installation, cost-effective

Brand / Quality:: Simply Taper Pins - High Quality
Inside Diameter:: 5mm
Length:: 40mm
Material:: Stainless Steel
Grade:: A1-303

Technical

d	5mm
L	40mm
d Tolerance	+0.00 -0.048mm
a max	0.75mm
Material	Stainless Steel
Material Grade	A1-303
DIN	DIN1B
Type	Solid
Weight per pin	0.0062kg

Reviews
