SKU: TRA4052

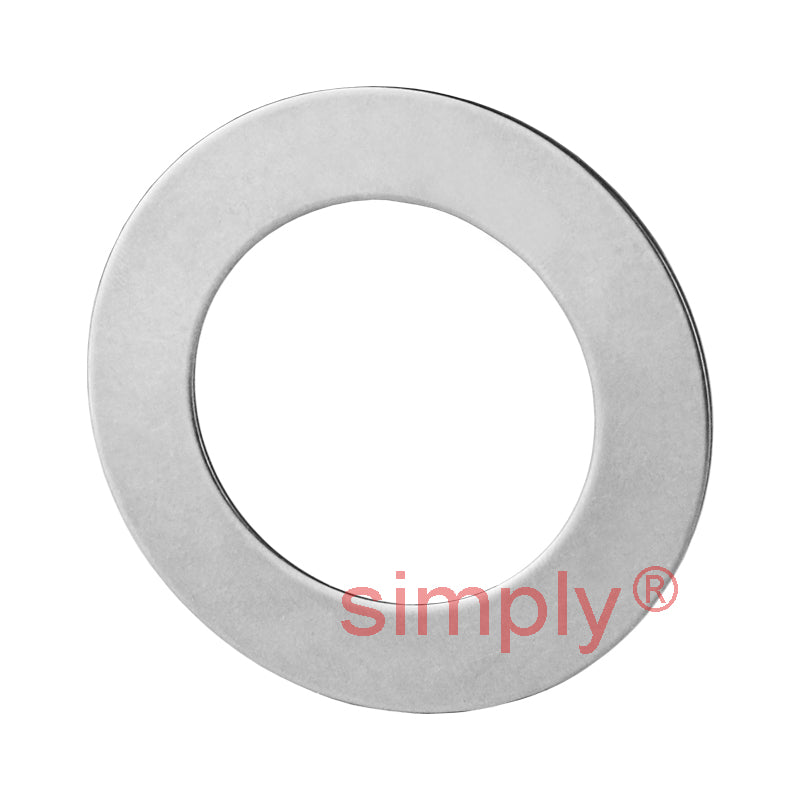

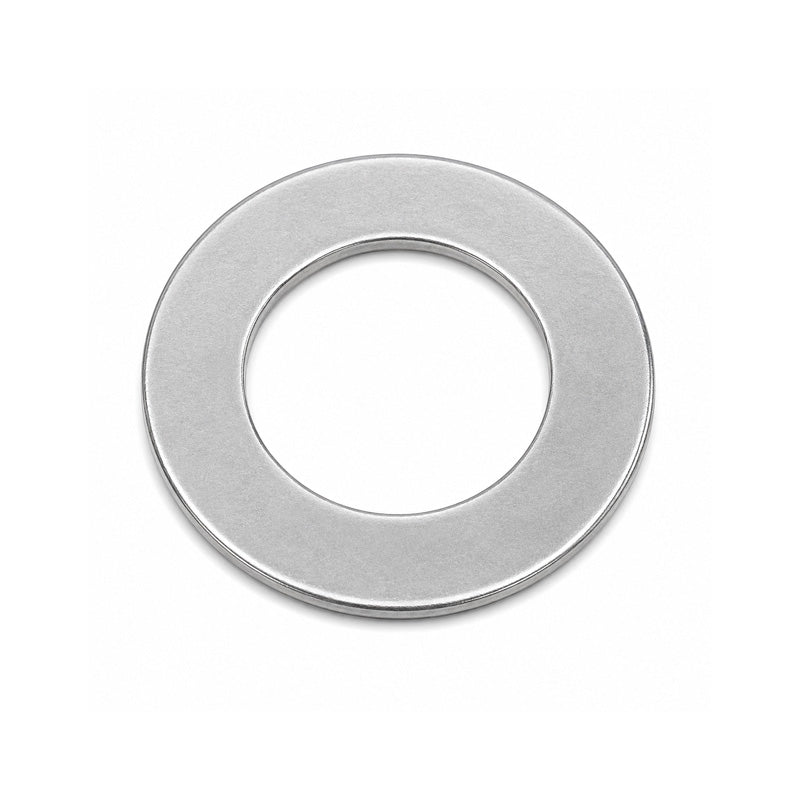

TRA4052 Needle Roller Thrust Washer 2.5x3.25x0.031 inch
TRA4052 Needle Roller Thrust Washer 2.5x3.25x0.031 inch
Regular price
€4,70
ex VAT
Regular price
Sale price
€4,70
ex VAT
In stock
Price Break
10+
€3,57
19+
€3,37
29+
€3,33
39+
€3,29
49+
€3,25
74+
€3,21
99+
€3,01
199+
€2,97
249+
€2,93
499+
€2,89
999+
€2,81
Description
Description
|
TRA Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. The series consists of TRA, TRB, TRC, TRD and TRE washers varying in thickness only. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Outside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Width:
- 0.79mm = 0.031 (1/32) inch
Technical
Technical
| d | 2.5 inch |
|---|---|
| d1 | 3.25 inch |
| h min | 0.031 inch |
| h max | 0.032 inch |
| Bearing | NTA4052 |
| Pilot min | 2.497 inch |
| Pilot max | 2.500 inch |
| Dia to clear washer | 3.281 inch |
| Weight | 0.029 lbs |
