SKU: TRC2840

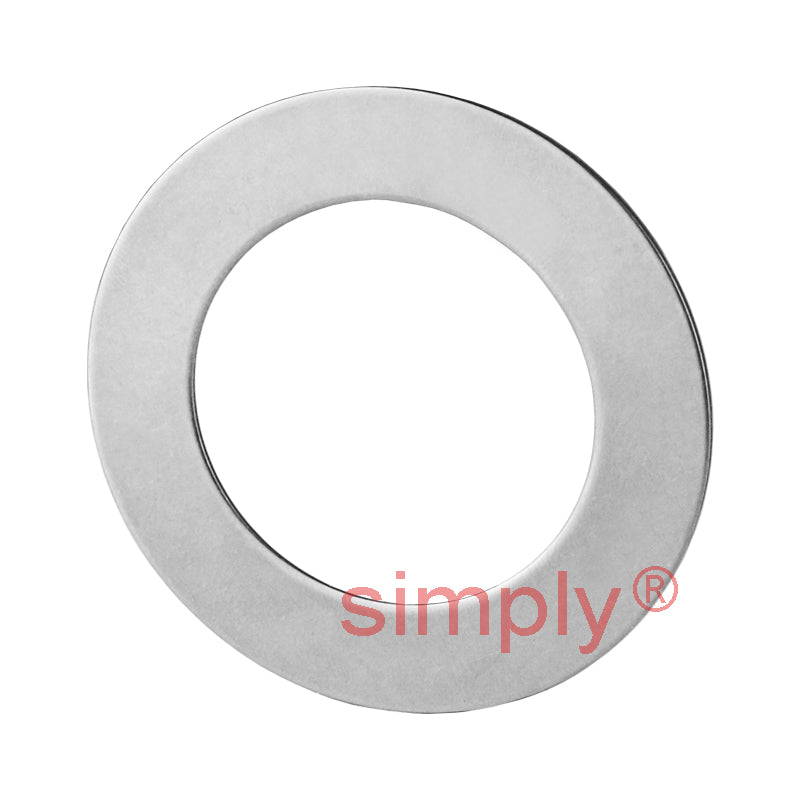

TRC2840 Needle Roller Thrust Washer 1.75x2.5x0.094 inch
TRC2840 Needle Roller Thrust Washer 1.75x2.5x0.094 inch
Regular price
€3,83
ex VAT
Regular price
Sale price
€3,83
ex VAT
In stock
Price Break
10+
€2,92
19+
€2,75
29+
€2,72
39+
€2,69
49+
€2,65
74+
€2,62
99+
€2,46
199+
€2,42
249+
€2,39
499+
€2,36
999+
€2,29
Description
Description
|
TRA Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. The series consists of TRA, TRB, TRC, TRD and TRE washers varying in thickness only. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Width:
- 2.38mm = 0.094 (3/32) inch
Technical
Technical
| d | 1.75 inch |
|---|---|
| d1 | 2.5 inch |
| h min | 0.094 inch |
| h max | 0.095 inch |
| Bearing | NTA2840 |
| Pilot min | 1.747 inch |
| Pilot max | 1.750 inch |
| Dia to clear washer | 2.531 inch |
| Weight | 0.063 lbs |
