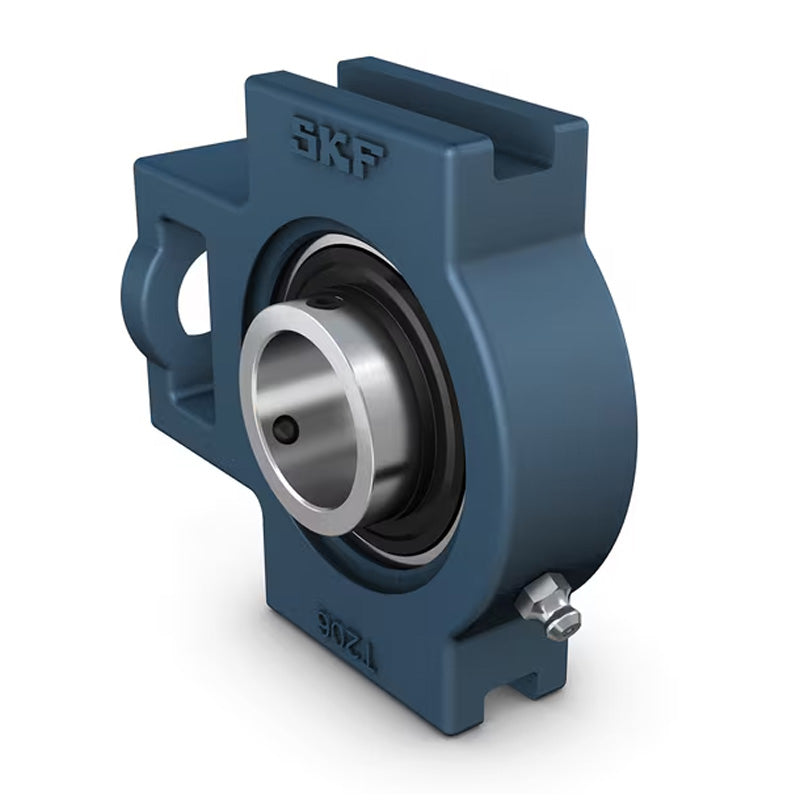

SKF TU1-3/4TF Grub Screw Type Take Up Unit 1-3/4 inch Bore
SKF TU1-3/4TF Grub Screw Type Take Up Unit 1-3/4 inch Bore
Regular price
€127,69
ex VAT
Regular price
Sale price
€127,69
ex VAT
In stock
Price Break
10+
€97,25
20+
€91,79
30+
€90,69
40+
€89,60
50+
€88,51
75+
€87,41
100+
€81,95
200+
€80,86
250+
€79,77
500+
€78,67
1000+
€76,49
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- TU
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| A | 49mm |
| A1 | 17.5mm |
| A2 | 35mm |
| B | 49.2mm |
| D1 | 29mm |
| H | 117mm |
| H1 | 101mm |
| H2 | 83mm |
| L | 144mm |
| L1 | 87mm |
| L2 | 15mm |
| L3 | 83mm |
| N | 49mm |
| N1 | 19mm |
| s1 | 30.2mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 2.5 kg |
