SKU: TU55TF-SKF

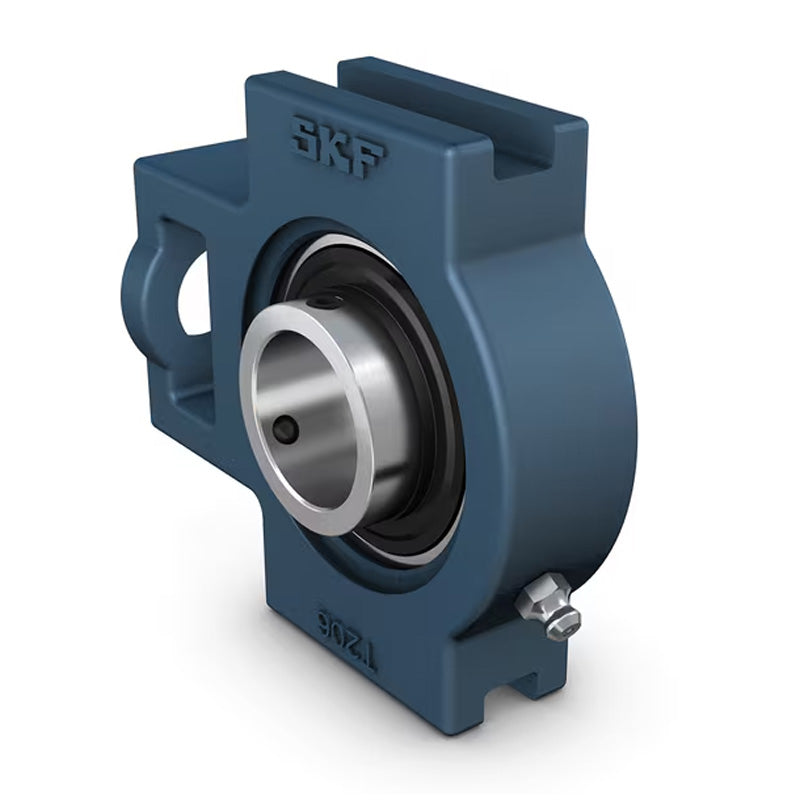

SKF TU55TF Grub Screw Type Take Up Unit 55mm Bore
SKF TU55TF Grub Screw Type Take Up Unit 55mm Bore
Regular price
€139,10
ex VAT
Regular price
Sale price
€139,10
ex VAT
In stock
Price Break
10+
€123,80
19+
€116,84
29+
€115,45
39+
€114,06
49+
€112,67
74+
€111,28
99+
€104,33
199+
€102,93
249+
€101,54
499+
€100,15
999+
€97,37
Couldn't load pickup availability
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Style:
- TU
Technical
Technical
| d | 55mm |
|---|---|
| A | 64mm |
| A1 | 27mm |
| A2 | 41mm |
| B | 55.6mm |
| D1 | 35mm |
| H | 146mm |
| H1 | 130mm |
| H2 | 102mm |
| L | 171mm |
| L1 | 106mm |
| L2 | 19mm |
| L3 | 95mm |
| N | 64mm |
| N1 | 25mm |
| s1 | 33.4mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit Pu | 1.25 kN |
| Limiting speed | 3600 rpm |
| A5 | 34mm |
| Weight | 3.85 kg |
| Compatible end cover | ECY211 |
