SKU: UC.202

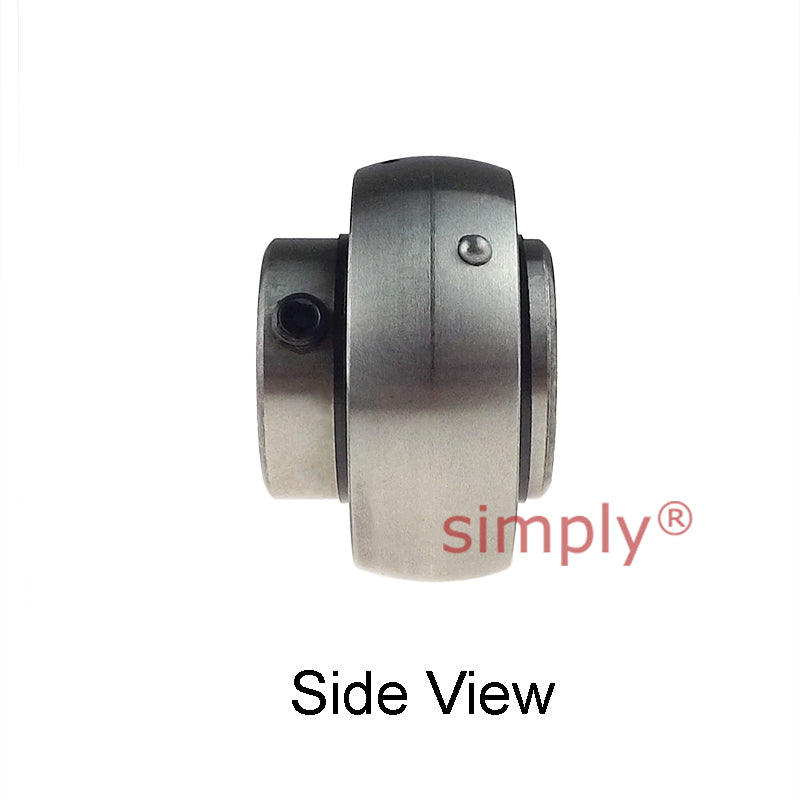

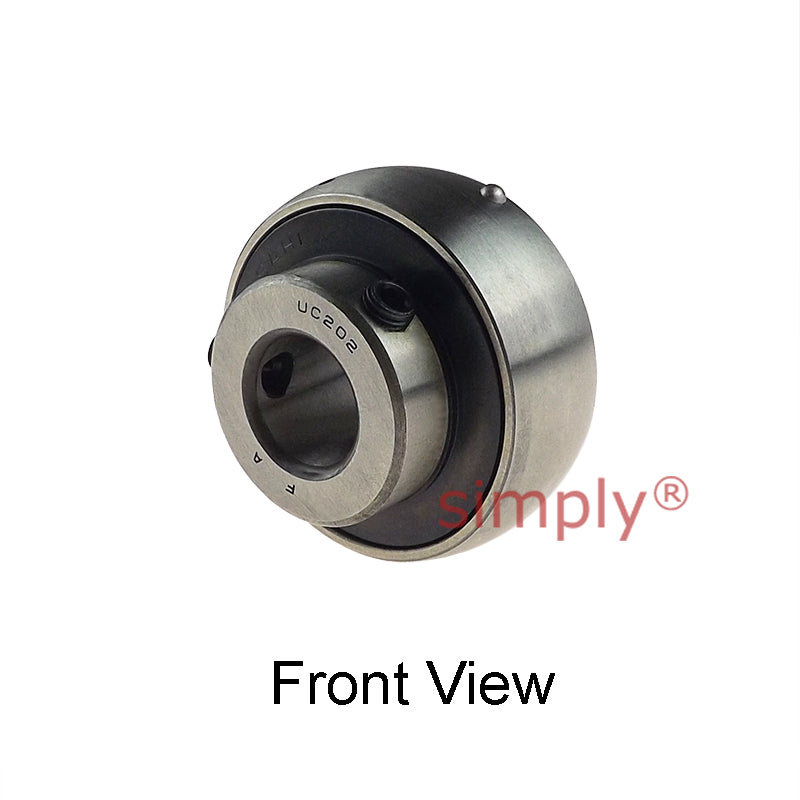

UC202 Metric Bearing Insert with 15mm Bore 47mm Outside Dia
UC202 Metric Bearing Insert with 15mm Bore 47mm Outside Dia
Regular price
€9,39
ex VAT
Regular price
Sale price
€9,39
ex VAT
In stock
Price Break
10+
€8,36
19+
€7,89
29+
€7,79
39+
€7,70
49+
€7,61
74+
€7,51
99+
€7,04
199+
€6,95
249+
€6,85
499+
€6,76
999+
€6,57
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 47mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 15mm |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| n | 12.7mm |
| m | 18.3mm |
| G | 4.8mm |
| Grub screw | M6x1 |
| Weight | 0.21 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
