SKU: UC.204

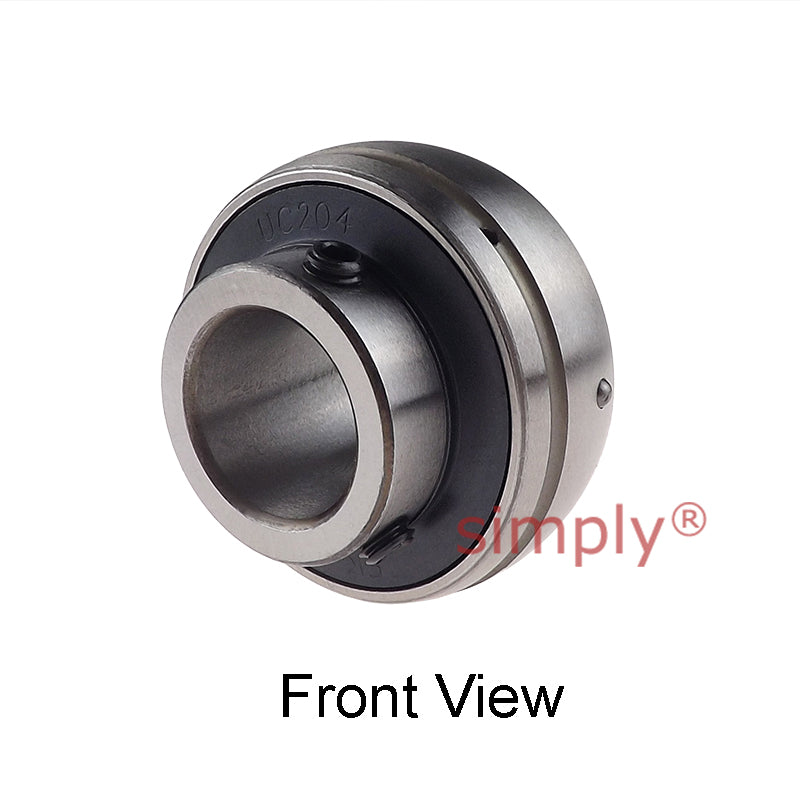

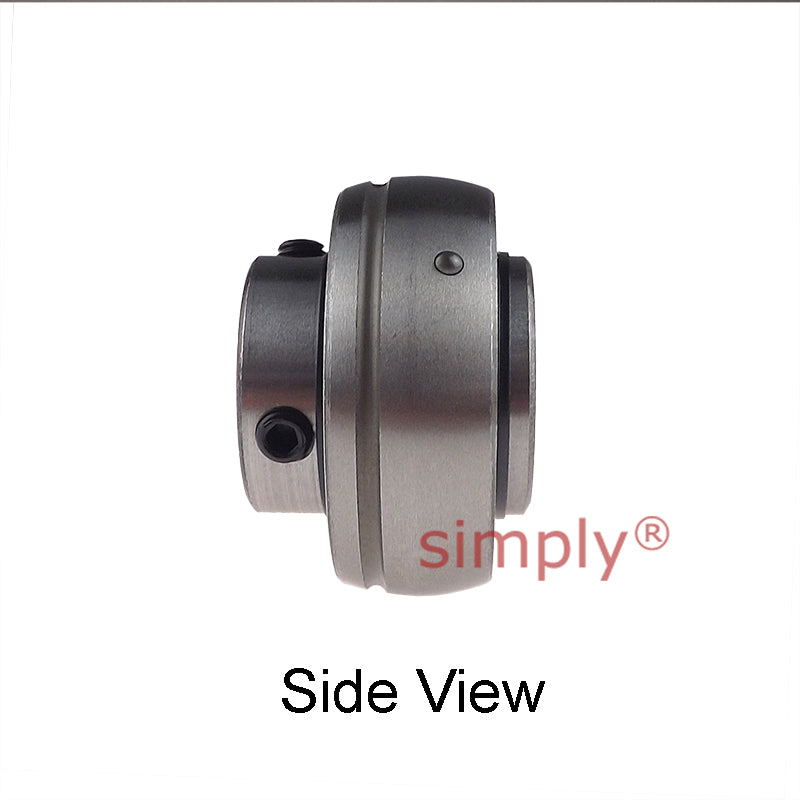

UC204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia
UC204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia
Regular price
€6,29
ex VAT
Regular price
Sale price
€6,29
ex VAT
Equivalent to: 1020-20G
In stock
Price Break
10+
€5,60
19+
€5,28
29+
€5,22
39+
€5,16
49+
€5,09
74+
€5,03
99+
€4,72
199+
€4,65
249+
€4,59
499+
€4,53
999+
€4,40
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1020-20G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Style:
- UC
- Type:
- Spherical Outer

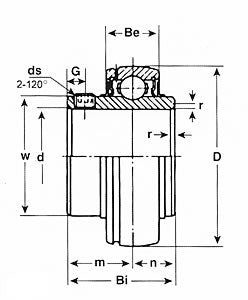

Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| n | 12.7mm |
| m | 18.3mm |
| G | 4.8mm |
| Grub screw | M6x1 |
| Weight | 0.21 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Rec max speed | 7450 rpm |
