SKU: UC.204-12

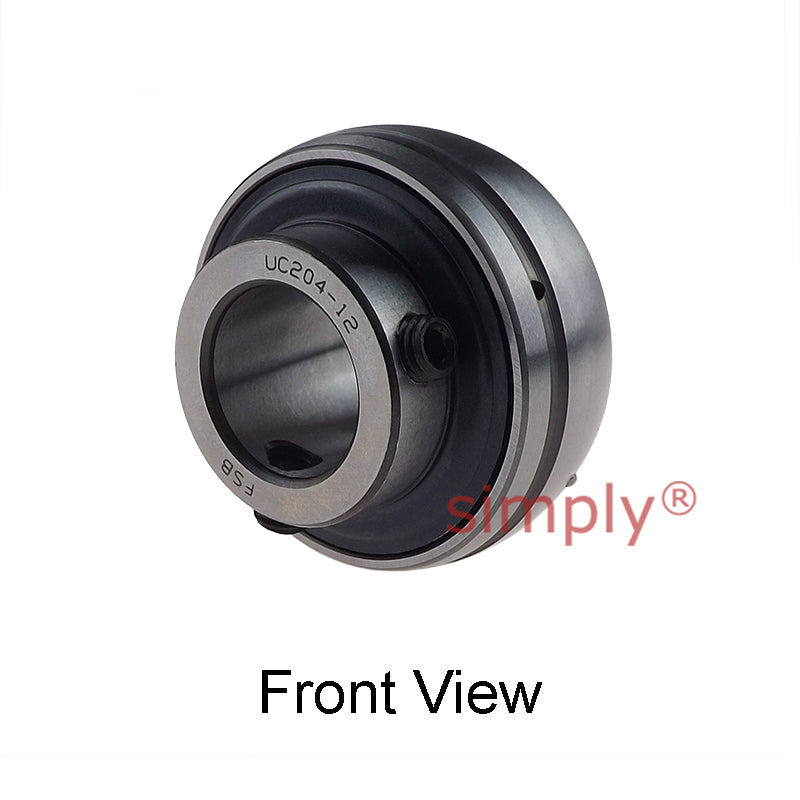

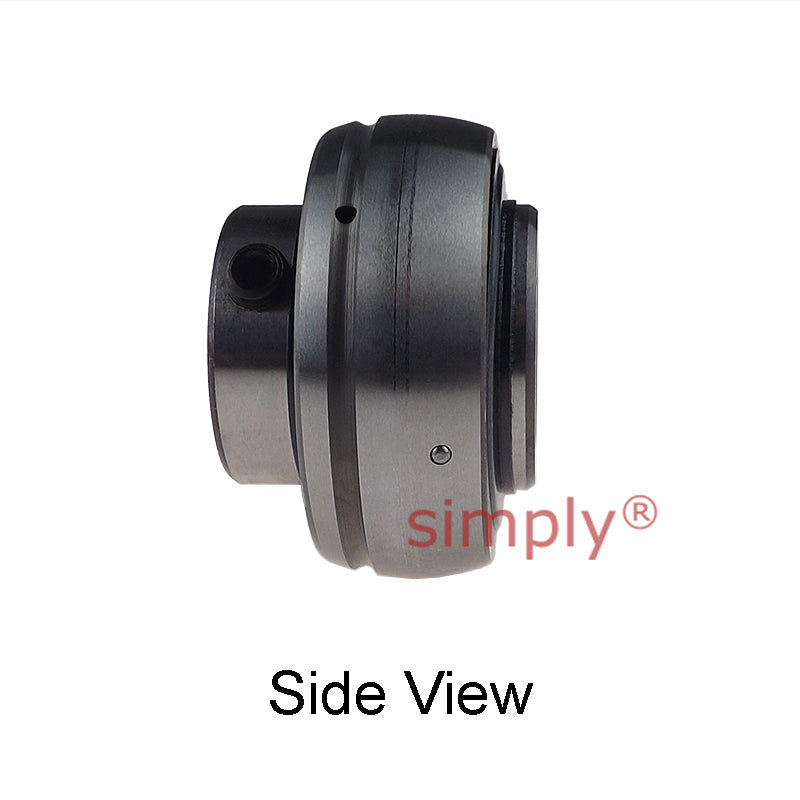

UC204-12 Imperial Bearing Insert with 3/4 inch Bore 47mm Outside Dia
UC204-12 Imperial Bearing Insert with 3/4 inch Bore 47mm Outside Dia
Regular price
€6,32
ex VAT
Regular price
Sale price
€6,32
ex VAT
Equivalent to: 1020-3/4G
In stock
Price Break
10+
€5,62
19+
€5,31
29+
€5,25
39+
€5,18
49+
€5,12
74+
€5,06
99+
€4,74
199+
€4,68
249+
€4,61
499+
€4,55
999+
€4,42
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1020-3/4G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 3/4 inch |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| n | 12.7mm |
| m | 18.3mm |
| G | 4.8mm |
| Grub screw | 1/4"-28 UNF |
| Weight | 0.21 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Rec max speed | 7450 rpm |
