SKU: UC.205

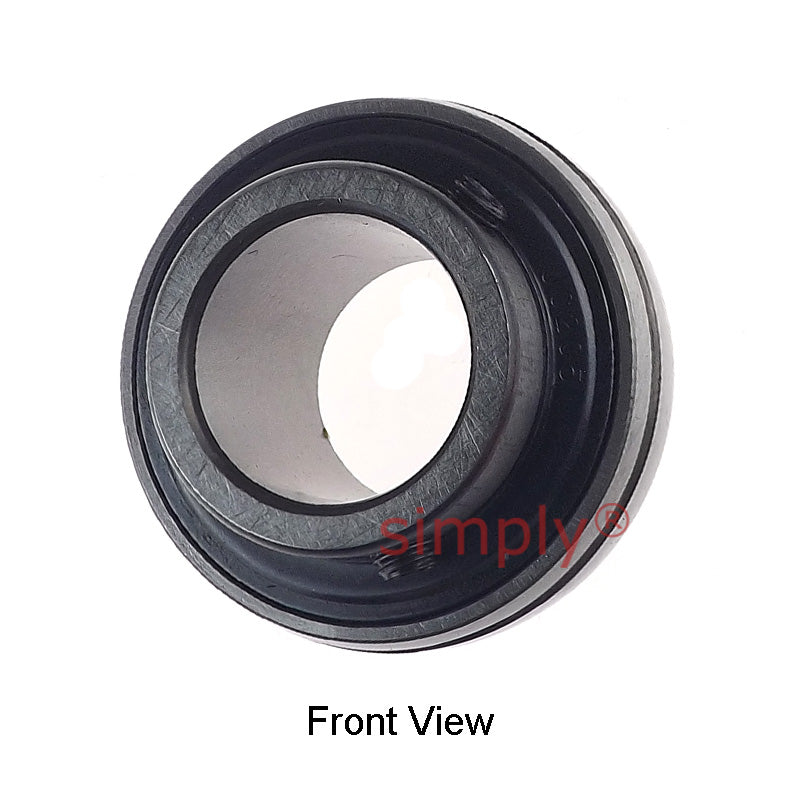

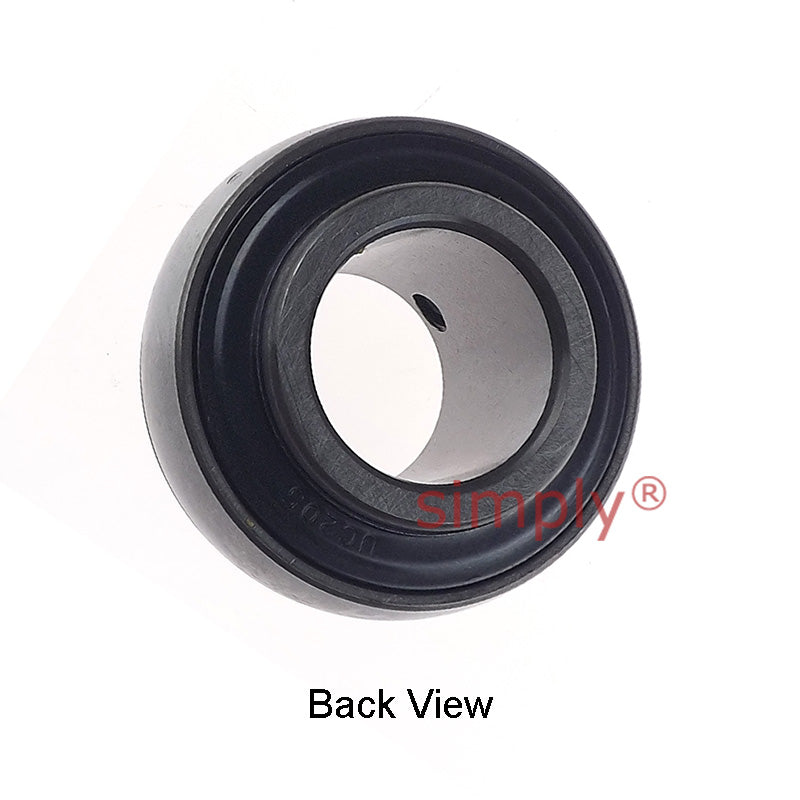

UC205 Metric Bearing Insert with 25mm Bore 52mm Outside Dia
UC205 Metric Bearing Insert with 25mm Bore 52mm Outside Dia
Regular price
€6,48
ex VAT
Regular price
Sale price
€6,48
ex VAT
Equivalent to: 1025-25G
In stock
Price Break
10+
€5,77
19+
€5,44
29+
€5,38
39+
€5,31
49+
€5,25
74+
€5,18
99+
€4,86
199+
€4,80
249+
€4,73
499+
€4,67
999+
€4,54
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1025-25G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Style:
- UC
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| Bi | 34mm |
| Be | 17mm |
| n | 14.3mm |
| m | 19.7mm |
| G | 5.5mm |
| Grub screw | M6x1 |
| Weight | 0.2 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
| Rec max speed | 6250 rpm |
