SKU: UC.207-22

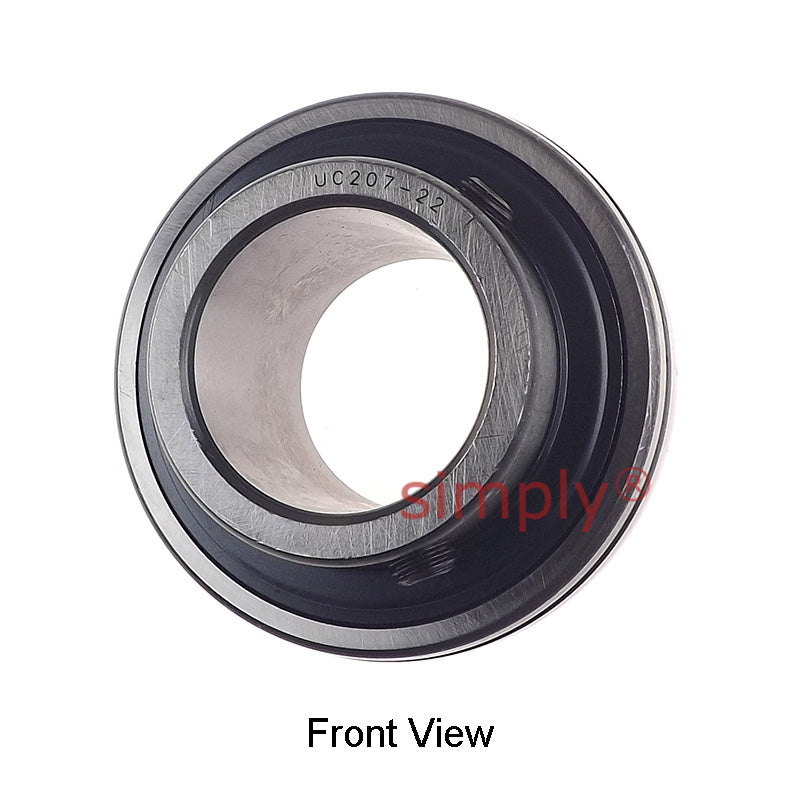

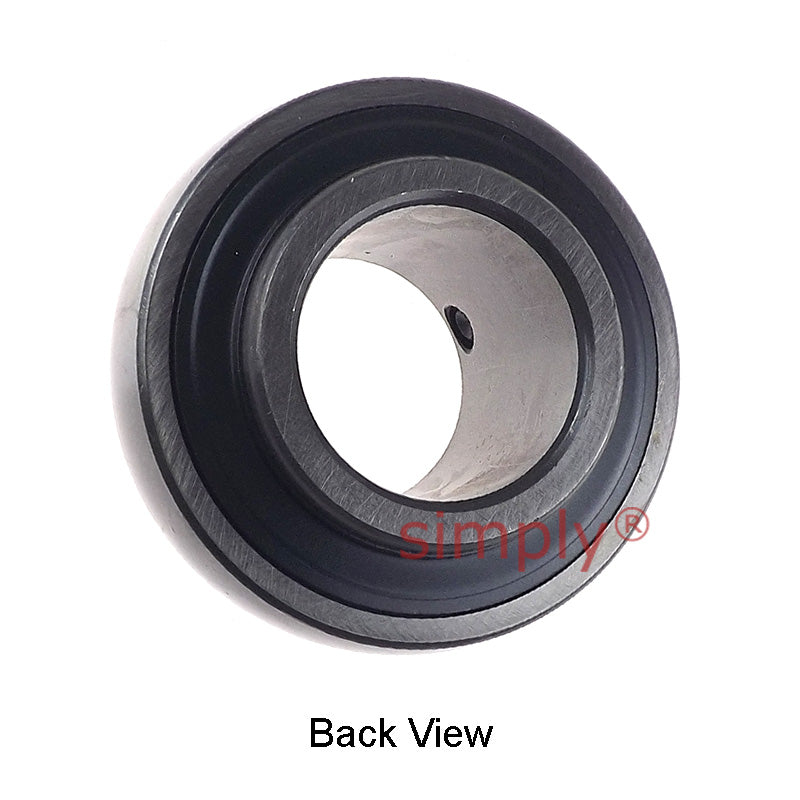

UC207-22 Imperial Bearing Insert with 1-3/8 inch Bore 72mm Outside Dia
UC207-22 Imperial Bearing Insert with 1-3/8 inch Bore 72mm Outside Dia
Regular price
€12,13
ex VAT
Regular price
Sale price
€12,13
ex VAT
Equivalent to: 1035-1-3/8G
In stock
Price Break
10+
€10,80
19+
€10,19
29+
€10,07
39+
€9,95
49+
€9,83
74+
€9,70
99+
€9,10
199+
€8,98
249+
€8,85
499+
€8,73
999+
€8,49
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1035-1-3/8G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 72mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 1-3/8 inch |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 20mm |
| n | 17.5mm |
| m | 25.4mm |
| G | 6.5mm |
| Grub screw | 5/16"-24 UNF |
| Weight | 0.48 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
