SKU: UC.315

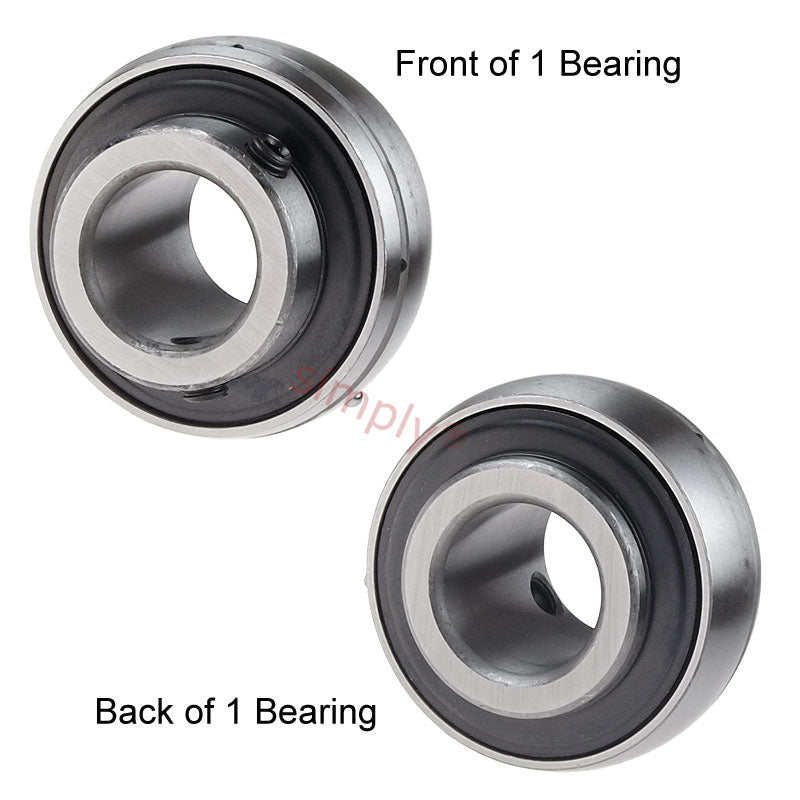

UC315 Heavy Duty Metric Bearing Insert With 75mm Bore 150mm Outside Dia
UC315 Heavy Duty Metric Bearing Insert With 75mm Bore 150mm Outside Dia
Regular price
€108,32
ex VAT
Regular price
Sale price
€108,32
ex VAT
In stock
Price Break
3+
€82,49
4+
€77,86
9+
€76,93
19+
€76,00
49+
€75,08
99+
€74,15
499+
€69,52
999+
€68,59
1999+
€67,66
2999+
€66,73
4999+
€64,88
Description
Description
|
UC300 Series Bearing Insert: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required. Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 150mm
- Style:
- UC
Technical
Technical
| d | 75mm |
|---|---|
| D | 150mm |
| Bi | 78mmm |
| Be | 40mm |
| n | 33mm |
| m | 45mm |
| G | 12mm |
| Grub screw | M14X1.5 |
| Weight | 4.7 kg |
| Dynamic load | 8900 kgf |
| Static load | 7310 kgf |
