SKU: UCC210-32

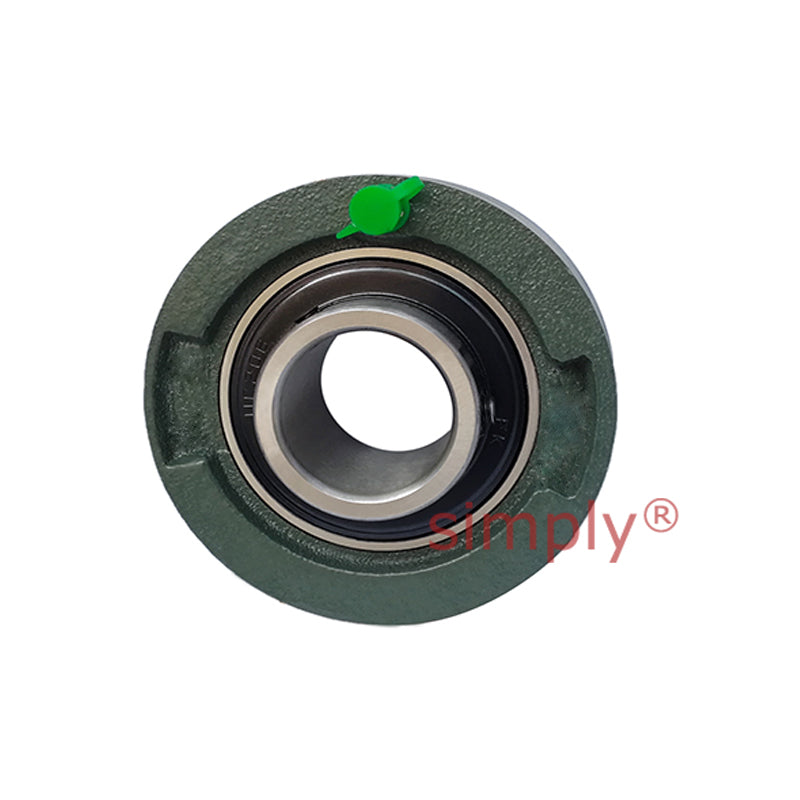

UCC210-32 Imperial Cast Iron Normal Duty Cartridge Unit with 2 inch Bore Insert 4.7244 inch Outside Dia
UCC210-32 Imperial Cast Iron Normal Duty Cartridge Unit with 2 inch Bore Insert 4.7244 inch Outside Dia
Regular price
€45,33
ex VAT
Regular price
Sale price
€45,33
ex VAT
In stock
Price Break
10+
€40,34
19+
€38,08
29+
€37,62
39+
€37,17
49+
€36,72
74+
€36,26
99+
€34,00
199+
€33,54
249+
€33,09
499+
€32,64
999+
€31,73
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 120mm = 4.7244 inch
- Style:
- UCC
Technical
Technical
| Bore d | 2 inch |
|---|---|
| Outer Dia a | 4.7244 inch |
| g | 1-19/04 inch |
| r | 0.098 inch |
| B | 2.0315 inch |
| n | 0.748 inch |
| Bearing No | UC210-32 |
| Housing No | C210 |
