SKU: UCC211-32

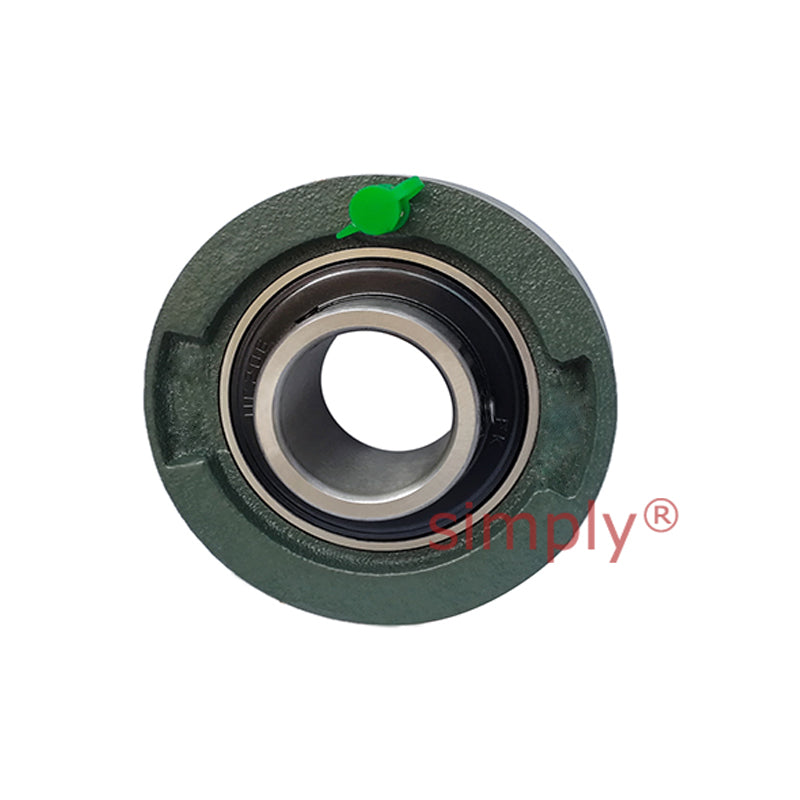

UCC211-32 Imperial Cast Iron Normal Duty Cartridge Unit with 2 inch Bore Insert 4.9213 inch Outside Dia
UCC211-32 Imperial Cast Iron Normal Duty Cartridge Unit with 2 inch Bore Insert 4.9213 inch Outside Dia
Regular price
€58,59
ex VAT
Regular price
Sale price
€58,59
ex VAT
In stock
Price Break
10+
€52,15
19+
€49,22
29+
€48,63
39+
€48,04
49+
€47,46
74+
€46,87
99+
€43,94
199+
€43,36
249+
€42,77
499+
€42,18
999+
€41,01
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 125.001mm = 4.9213 inch
- Style:
- UCC
Technical
Technical
| Bore d | 2 inch |
|---|---|
| Outer Dia a | 4.9213 inch |
| g | 1-3/8 inch |
| r | 0.098 inch |
| B | 2.189 inch |
| n | 0.874 inch |
| Bearing No | UC211-32 |
| Housing No | C211 |
