SKU: UCC212D1-NTN

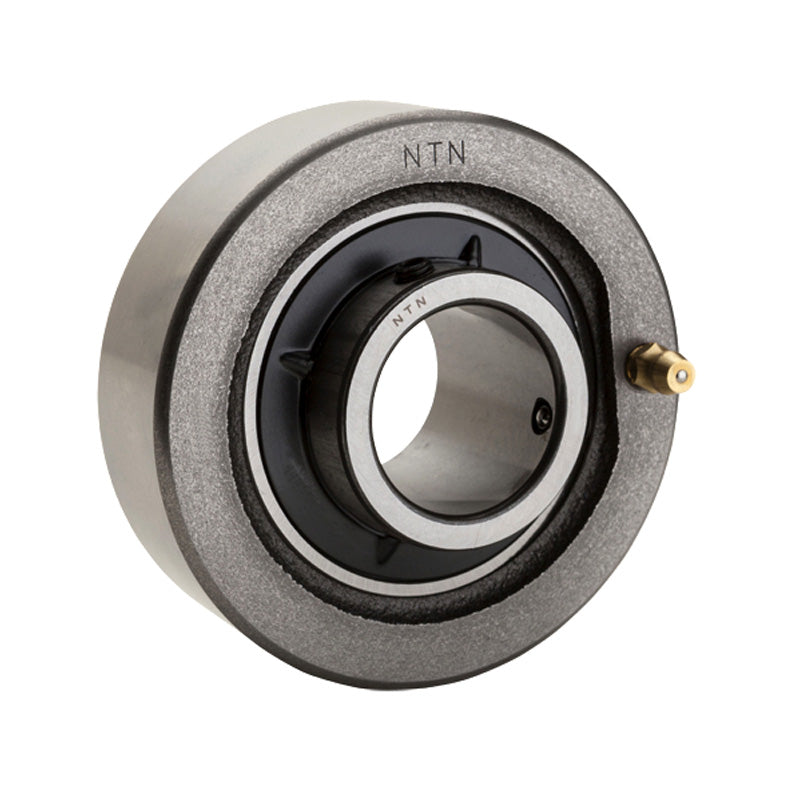

NTN UCC212D1 Metric Cast Iron Cartridge Unit with 60mm Bore Insert 130mm Outside Dia - Allow 2-3 Days
NTN UCC212D1 Metric Cast Iron Cartridge Unit with 60mm Bore Insert 130mm Outside Dia - Allow 2-3 Days
Regular price
€103,84
ex VAT
Regular price
Sale price
€103,84
ex VAT
In stock
Price Break
5+
€102,80
10+
€98,65
20+
€96,57
50+
€93,46
100+
€91,38
500+
€86,19
1000+
€72,69
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCC
Technical
Technical
| Shaft diameter | 60mm |
|---|---|
| H | 130mm |
| A | 38mm |
| r | 2.5mm |
| B | 65.1mm |
| S | 25.4mm |
| Mass | 2.5 kg |
