SKU: UCC213D1-NTN

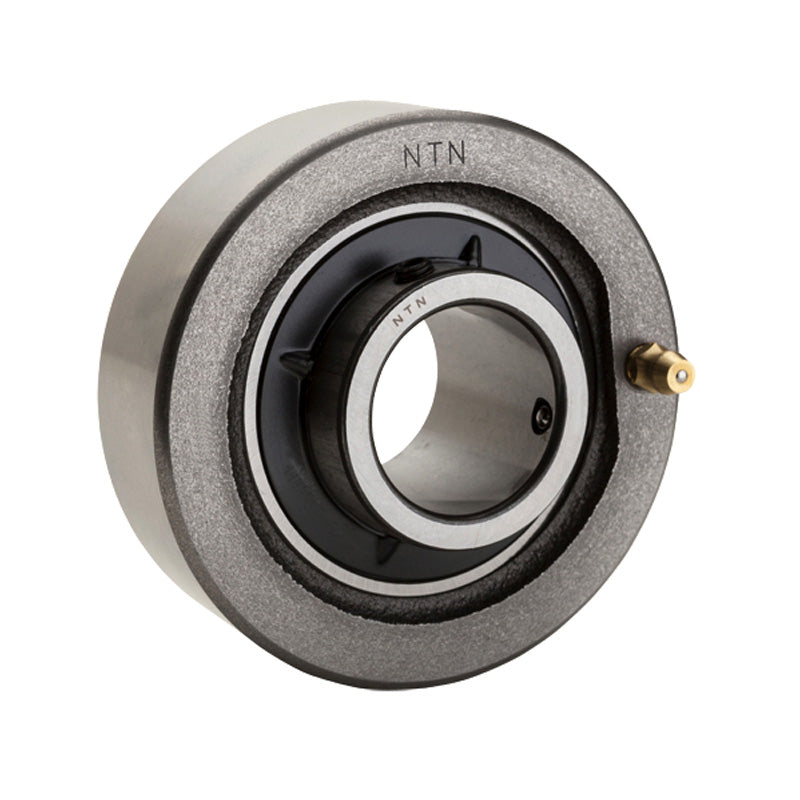

NTN UCC213D1 Metric Cast Iron Cartridge Unit with 65mm Bore Insert 140mm Outside Dia - Allow 2-3 Days
NTN UCC213D1 Metric Cast Iron Cartridge Unit with 65mm Bore Insert 140mm Outside Dia - Allow 2-3 Days
Regular price
€100,06
ex VAT
Regular price
Sale price
€100,06
ex VAT
In stock
Price Break
10+
€89,05
19+
€84,05
29+
€83,05
39+
€82,05
49+
€81,05
74+
€80,05
99+
€75,05
199+
€74,04
249+
€73,04
499+
€72,04
999+
€70,04
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCC
Technical
Technical
| Shaft diameter | 65mm |
|---|---|
| H | 140mm |
| A | 40mm |
| r | 3mm |
| B | 65.1mm |
| S | 25.4mm |
| Mass | 3 kg |
