SKU: UCEHE209L3-SNR

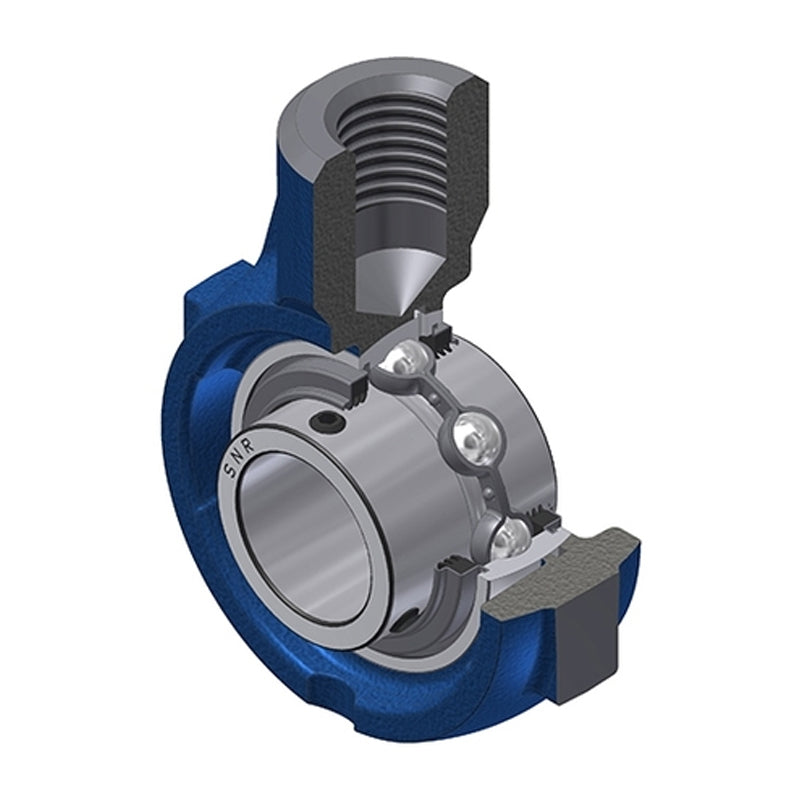

SNR UCEHE209L3 Metric Cast Iron Hanger Bearing Unit with 45mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
SNR UCEHE209L3 Metric Cast Iron Hanger Bearing Unit with 45mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
Regular price
€90,79
ex VAT
Regular price
Sale price
€90,79
ex VAT
In stock
Price Break
5+
€89,88
10+
€86,25
20+
€84,43
50+
€81,71
100+
€79,90
500+
€75,36
1000+
€63,55
Couldn't load pickup availability
Description
Description
UCEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCEHE
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| A | 40mm |
| A2 | 40mm |
| B | 49.2mm |
| E | 24mm |
| H | 110mm |
| L | 145mm |
| L1 | 90mm |
| L3 | 45mm |
| S | 19mm |
| G | R1/8″ |
| G1 | M24 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.88 kg |
