SKU: UCF217D1-NTN

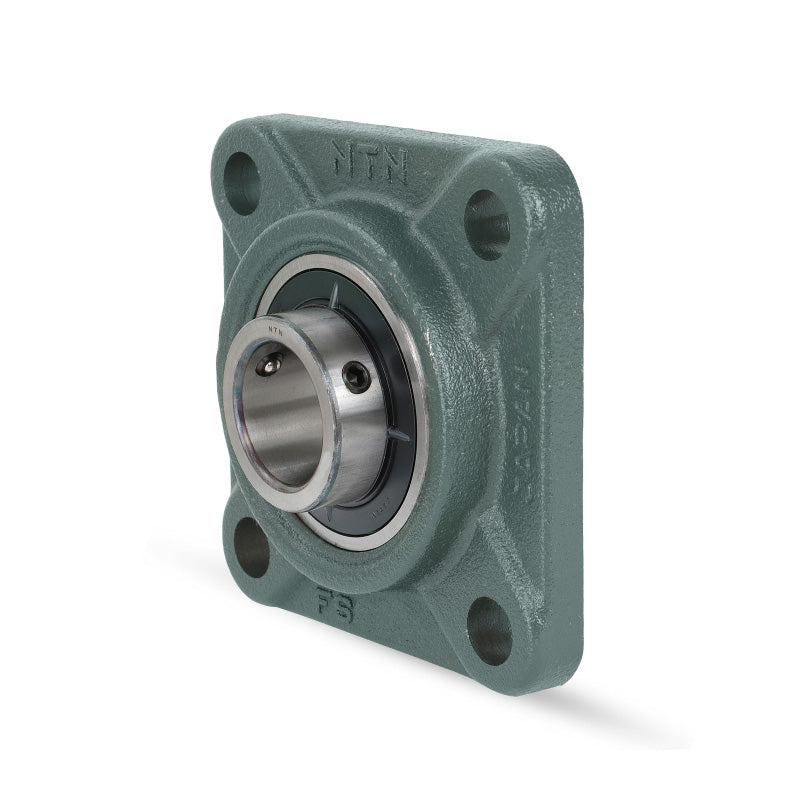

NTN UCF217D1 Metric Four Bolt Square Cast Iron Flange Housing with 85mm Bore Insert - Allow 2-3 Days
NTN UCF217D1 Metric Four Bolt Square Cast Iron Flange Housing with 85mm Bore Insert - Allow 2-3 Days
Regular price
€310,78
ex VAT
Regular price
Sale price
€310,78
ex VAT
In stock
Price Break
3+
€263,28
4+
€252,64
9+
€247,32
19+
€239,35
49+
€234,03
99+
€220,73
499+
€186,16
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 85mm
- Style:
- UCF
- Bolt Hole Centres:
- 175mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 85mm |
| L | 220mm |
| J | 175mm |
| A<sub>2</sub> | 36mm |
| A<sub>1</sub> | 24mm |
| A | 63mm |
| N | 23mm |
| A<sub>0</sub> | 87.6mm |
| B | 85.7mm |
| S | 34.1mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 92 kN |
| Static load C<sub>0r</sub> | 64 kN |
| Fatigue load limit C<sub>u</sub> | 4.6 kN |
| --- | Unit information |
| Mass | 9.8 kg |
