SKU: UCF218N-SNR

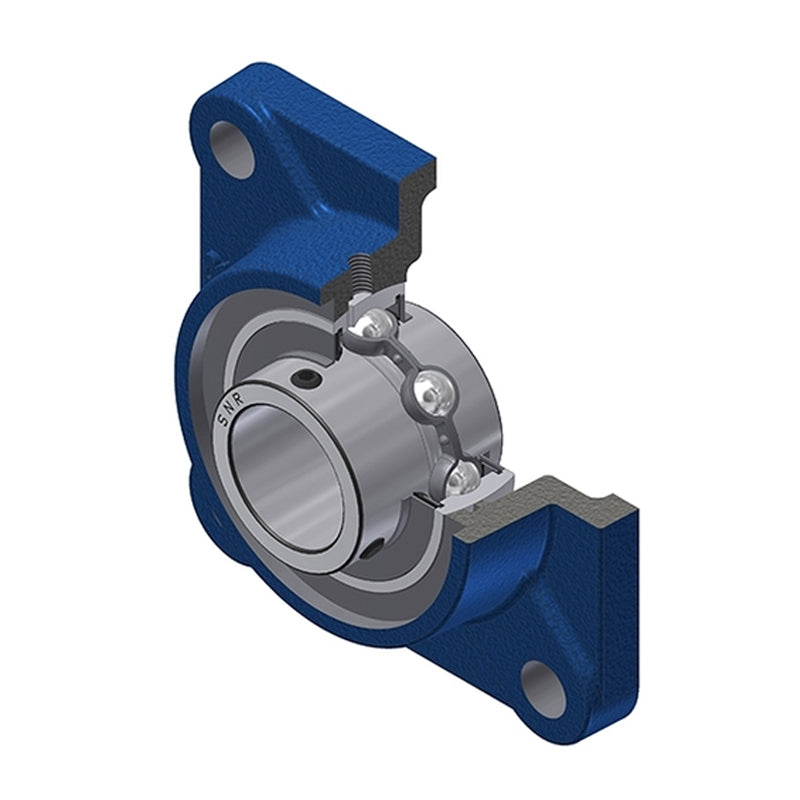

SNR UCF218N Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Insert - Allow 2-3 Days
SNR UCF218N Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Insert - Allow 2-3 Days
Regular price
€310,88
ex VAT
Regular price
Sale price
€310,88
ex VAT
In stock
Price Break
3+
€263,37
4+
€252,73
9+
€247,41
19+
€239,43
49+
€234,11
99+
€220,80
499+
€186,22
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 90mm
- Style:
- UCF
- Bolt Hole Centres:
- 187mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 90mm |
| A | 68mm |
| A1 | 25mm |
| A2 | 96.3mm |
| B | 96mm |
| e | 40mm |
| J | 187mm |
| L | 235mm |
| N | 23mm |
| S | 39.7mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 96 kN |
| Static load C0 | 71.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 11.28 kg |
