SKU: UCF320D1-NTN

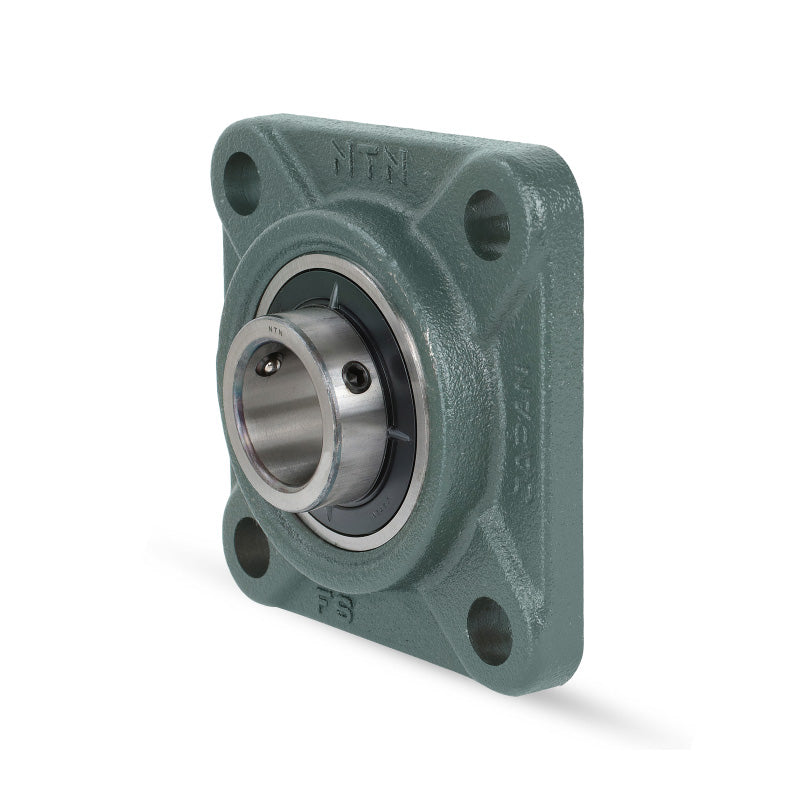

NTN UCF320D1 Metric Four Bolt Square Cast Iron Flange Housing with 100mm Bore Insert - Allow 2-3 Days
NTN UCF320D1 Metric Four Bolt Square Cast Iron Flange Housing with 100mm Bore Insert - Allow 2-3 Days
Regular price
€665,59
ex VAT
Regular price
Sale price
€665,59
ex VAT
Allow 2-3 Days
In stock
Price Break
5+
€658,93
10+
€632,31
20+
€619,00
50+
€599,03
100+
€585,72
500+
€552,44
1000+
€465,91
Couldn't load pickup availability
Share this product
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Style:
- UCF
- Bolt Hole Centres:
- 242mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 100mm |
| L | 310mm |
| J | 242mm |
| A<sub>2</sub> | 59mm |
| A<sub>1</sub> | 32mm |
| A | 94mm |
| N | 38mm |
| A<sub>0</sub> | 125mm |
| B | 108mm |
| S | 42mm |
| Fixing bolt | M33 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 192 kN |
| Static load C<sub>0r</sub> | 141 kN |
| Fatigue load limit C<sub>u</sub> | 8.75 kN |
| --- | Unit information |
| Mass | 27 kg |
