SKU: UCFC208T20-SNR

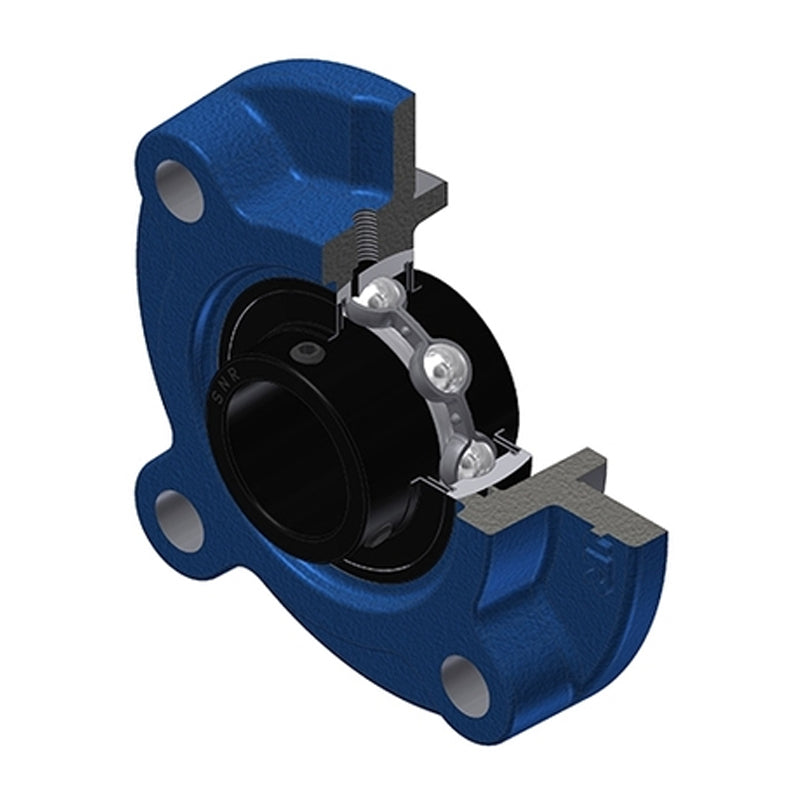

SNR UCFC208T20 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert Wide Temperature Version - Allow 2-3 Days
SNR UCFC208T20 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert Wide Temperature Version - Allow 2-3 Days
Regular price
€129,54
ex VAT
Regular price
Sale price
€129,54
ex VAT
In stock
Price Break
3+
€109,74
4+
€105,31
9+
€103,09
19+
€99,77
49+
€97,55
99+
€92,01
499+
€77,60
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 120mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 36mm |
| A1 | 9mm |
| A2 | 41.2mm |
| A4 | 26mm |
| B | 49.2mm |
| e | 11mm |
| H3 | 100mm |
| J | 120mm |
| L | 145mm |
| N | 14mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.99 kg |
