SKU: UCFC212T20-SNR
SNR UCFC212T20 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert Wide Temperature Version - Allow 2-3 Days
SNR UCFC212T20 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert Wide Temperature Version - Allow 2-3 Days
Regular price
€452,99
ex VAT
Regular price
Sale price
€452,99
ex VAT
In stock
Price Break
3+
€383,76
4+
€368,26
9+
€360,51
19+
€348,88
49+
€341,12
99+
€321,74
499+
€271,35
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|

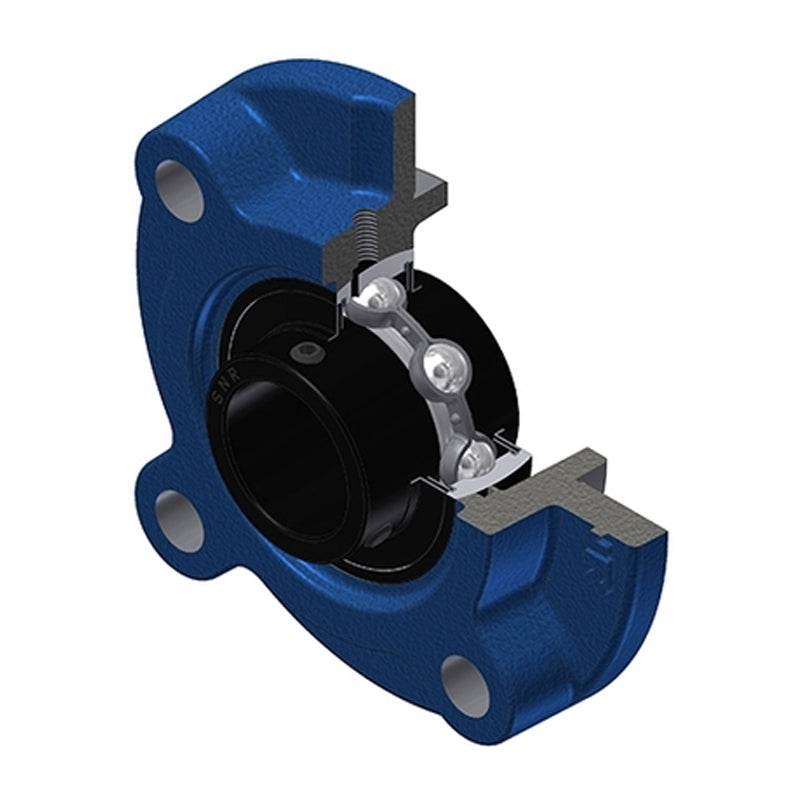

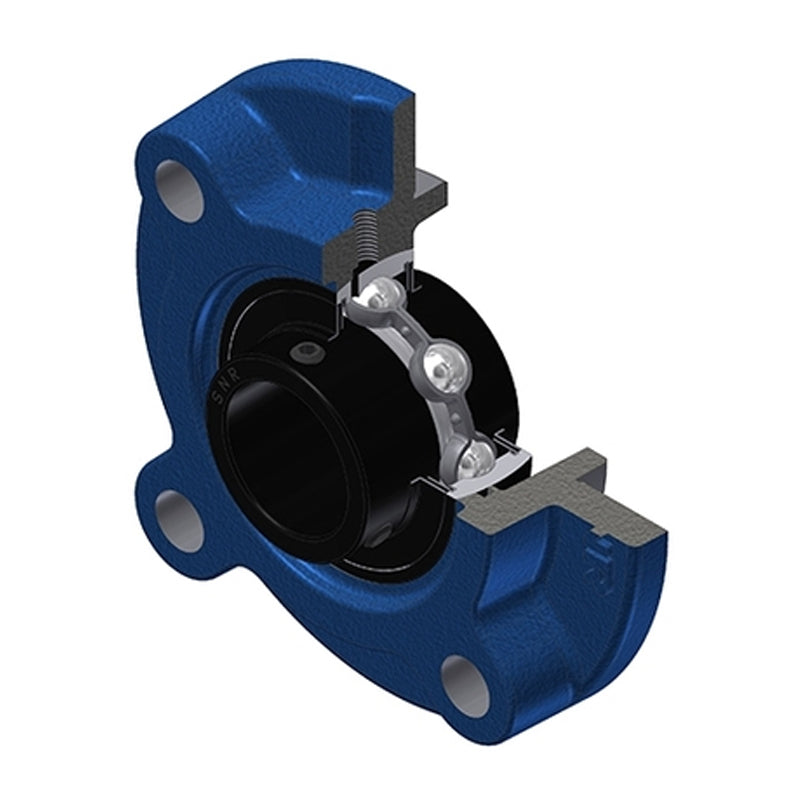

UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 160mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 48mm |
| A1 | 15mm |
| A2 | 56.7mm |
| A4 | 36mm |
| B | 65.1mm |
| e | 17mm |
| H3 | 135mm |
| J | 160mm |
| L | 195mm |
| N | 19mm |
| S | 25.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4.92 kg |
