SKU: UCFL208T20-SNR

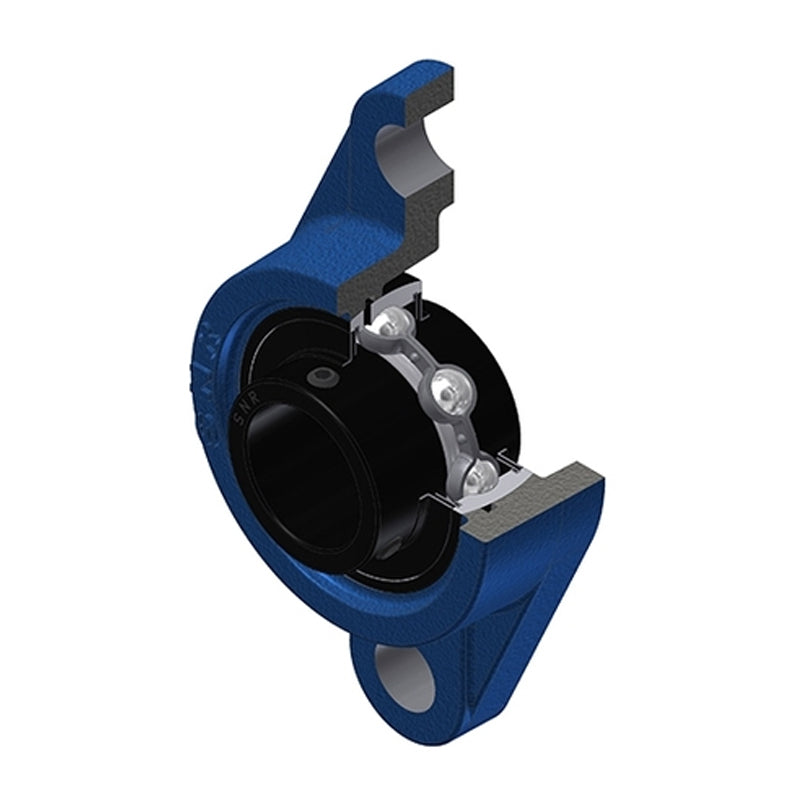

SNR UCFL208T20 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert Wide Temperature Version - Allow 2-3 Days
SNR UCFL208T20 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price
€116,01
ex VAT
Regular price
Sale price
€116,01
ex VAT
In stock
Price Break
5+
€114,85
10+
€110,21
20+
€107,89
50+
€104,41
100+
€102,09
500+
€96,29
1000+
€81,21
Couldn't load pickup availability
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCFL
- Bolt Hole Centres:
- 144mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 36mm |
| A1 | 14mm |
| A2 | 51.2mm |
| B | 49.2mm |
| e | 21mm |
| H | 175mm |
| J | 144mm |
| L | 100mm |
| N | 16mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.48 kg |
