SKU: UCFLE207-22N-SNR

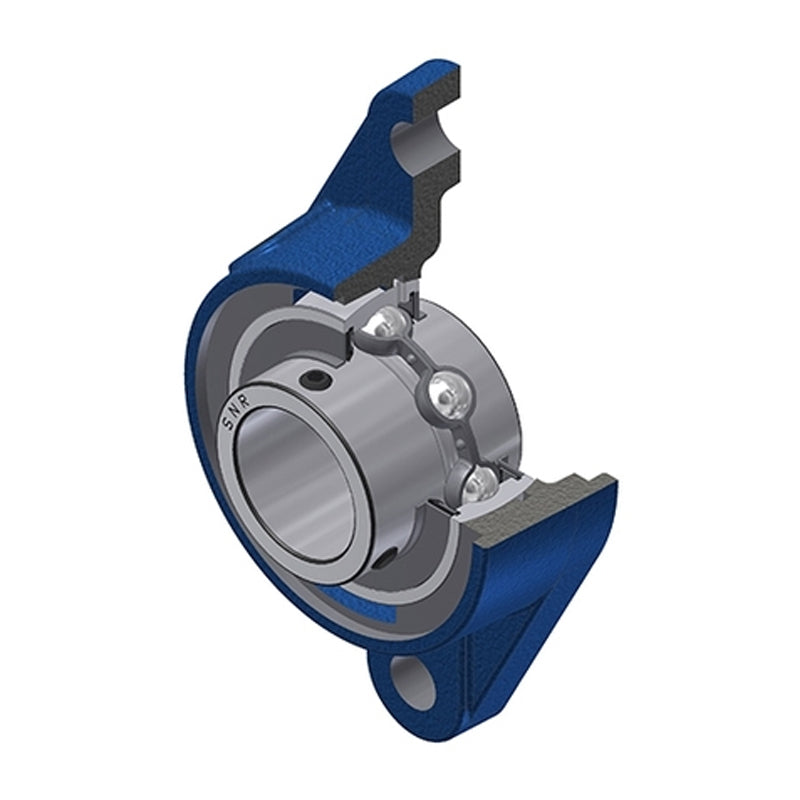

SNR UCFLE207-22N Imperial Two Bolt Oval Cast Iron Flange Housing with 1-3/8 inch Bore Insert - Allow 2-3 Days
SNR UCFLE207-22N Imperial Two Bolt Oval Cast Iron Flange Housing with 1-3/8 inch Bore Insert - Allow 2-3 Days
Regular price
€64,75
ex VAT
Regular price
Sale price
€64,75
ex VAT
In stock
Price Break
3+
€54,86
4+
€52,64
9+
€51,53
19+
€49,87
49+
€48,76
99+
€45,99
499+
€38,79
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- UCFLE
- Bolt Hole Centres:
- 130mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-3/8 inch |
| A | 33.7mm |
| A1 | 12.5mm |
| A2 | 46.4mm |
| B | 42.9mm |
| e | 21mm |
| H | 155mm |
| J | 130mm |
| L | 92mm |
| N | 14mm |
| S | 17.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 8 Nm |
| Mass | 1.18 kg |
