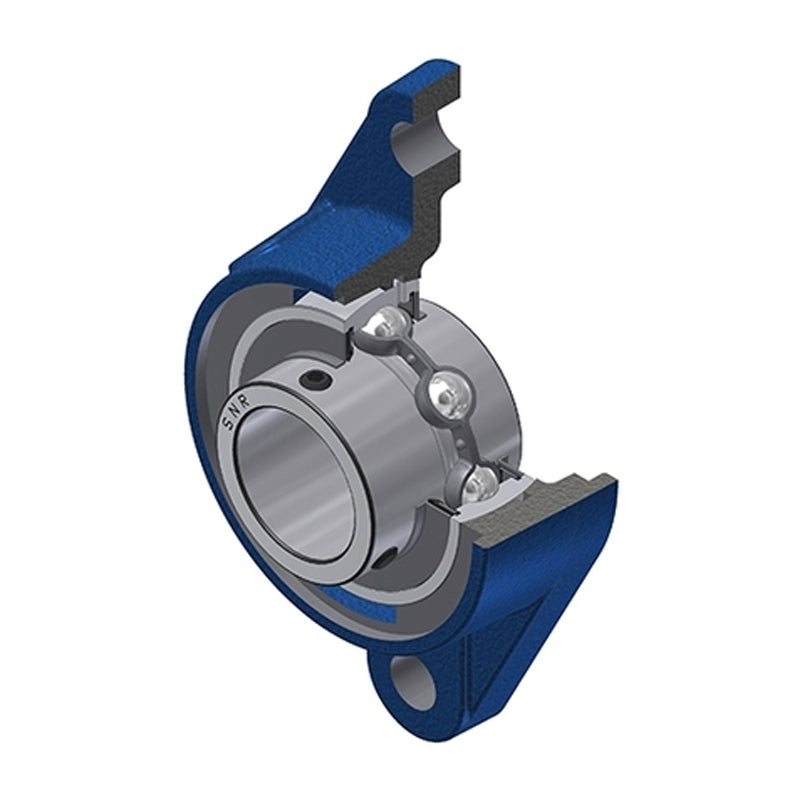

SNR UCFLE213N Metric Two Bolt Oval Cast Iron Flange Housing with 65mm Bore Insert - Allow 2-3 Days
SNR UCFLE213N Metric Two Bolt Oval Cast Iron Flange Housing with 65mm Bore Insert - Allow 2-3 Days
Regular price
€155,43
ex VAT
Regular price
Sale price
€155,43
ex VAT
In stock
Price Break
3+
€131,68
4+
€126,36
9+
€123,70
19+
€119,71
49+
€117,05
99+
€110,40
499+
€93,11
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCFLE
- Bolt Hole Centres:
- 216mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 65mm |
| A | 57mm |
| A1 | 18mm |
| A2 | 77.7mm |
| B | 65.1mm |
| e | 38mm |
| H | 258mm |
| J | 216mm |
| L | 160mm |
| N | 21mm |
| S | 25.4mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 57.2 kN |
| Static load C0 | 40 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 5.56 kg |
