SKU: UCFLX.05

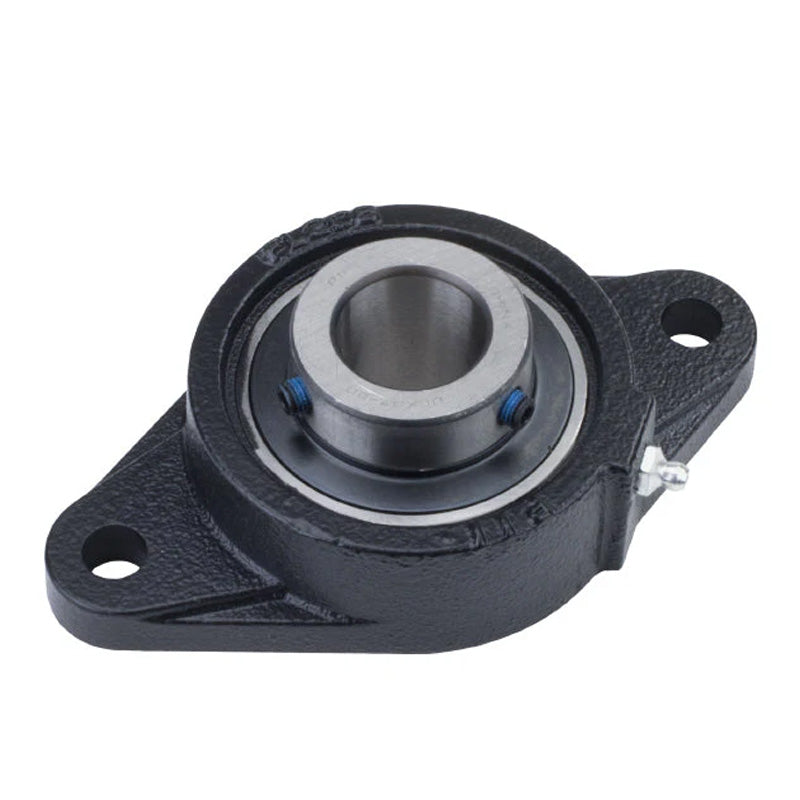

UCFLX05 Metric Two Bolt Oval Cast Iron Housing with 25mm Bore Insert
UCFLX05 Metric Two Bolt Oval Cast Iron Housing with 25mm Bore Insert
Regular price
€10,33
ex VAT
Regular price
Sale price
€10,33
ex VAT
Equivalent to: MSFT25
In stock
Price Break
10+
€9,19
19+
€8,68
29+
€8,57
39+
€8,47
49+
€8,37
74+
€8,26
99+
€7,75
199+
€7,64
249+
€7,54
499+
€7,44
999+
€7,23
Couldn't load pickup availability
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSFT25
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- UCFLX
- Bolt Hole Centres:
- 117mm
Technical
Technical
| d | 25mm |
|---|---|
| a | 141mm |
| e | 117mm |
| i | 117mm |
| g | 13mm |
| l | 30mm |
| s | 12mm |
| b | 83mm |
| z | 40.2mm |
| Bi | 38.1mm |
| n | 15.9mm |
| Bolt | M10 |
| Weight | 1 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
| Rec max speed | 5300 rpm |
