SKU: UCLP209-27

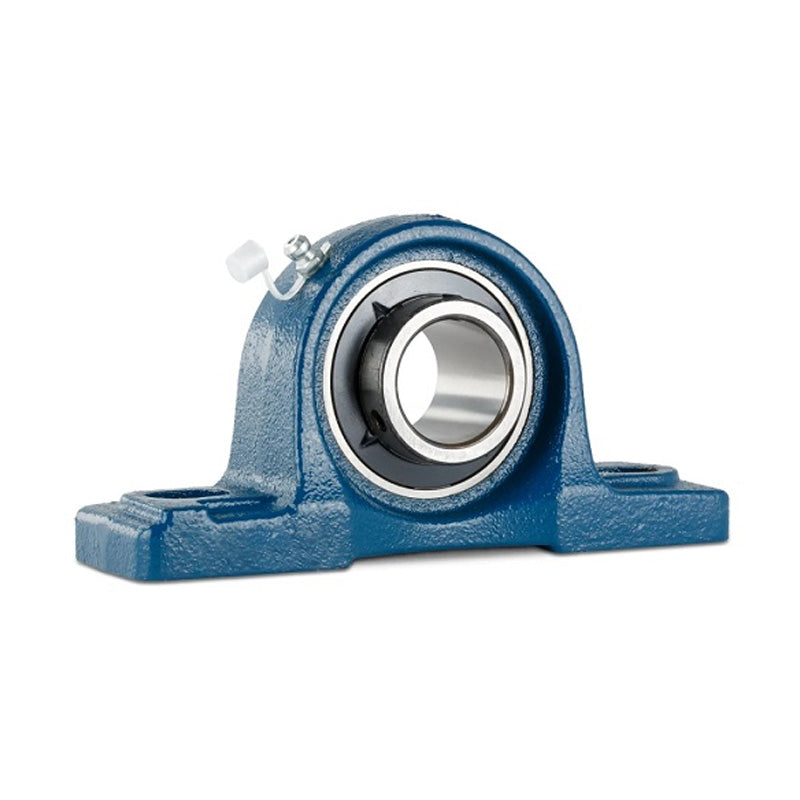

UCLP209-27 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-11/16 inch Insert
UCLP209-27 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-11/16 inch Insert
Regular price
€38,63
ex VAT
Regular price
Sale price
€38,63
ex VAT
In stock
Price Break
10+
€34,38
19+
€32,45
29+
€32,06
39+
€31,68
49+
€31,29
74+
€30,90
99+
€28,97
199+
€28,59
249+
€28,20
499+
€27,81
999+
€27,04
Couldn't load pickup availability
Description
Description
UCLP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- UCLP
- Bolt Hole Centres:
- 146.05mm = 5.75 (5-3/4) inch
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| h | 2-1/16 inch |
| a | 7-15/32 inch |
| e | 5-3/4 inch |
| b | 2-1/8 inch |
| s1 | 43/64 inch |
| s2 | 25/32 inch |
| g | 25/32 inch |
| w | 4-3/32 inch |
| B | 1.937 inch |
| n | 0.748 inch |
| Bolt size | 1/2 inch |
| Bearing no | UC209-27 |
| Housing no | LP209 |
| Weight | 2.09 kg |
