SKU: UCLP211-32

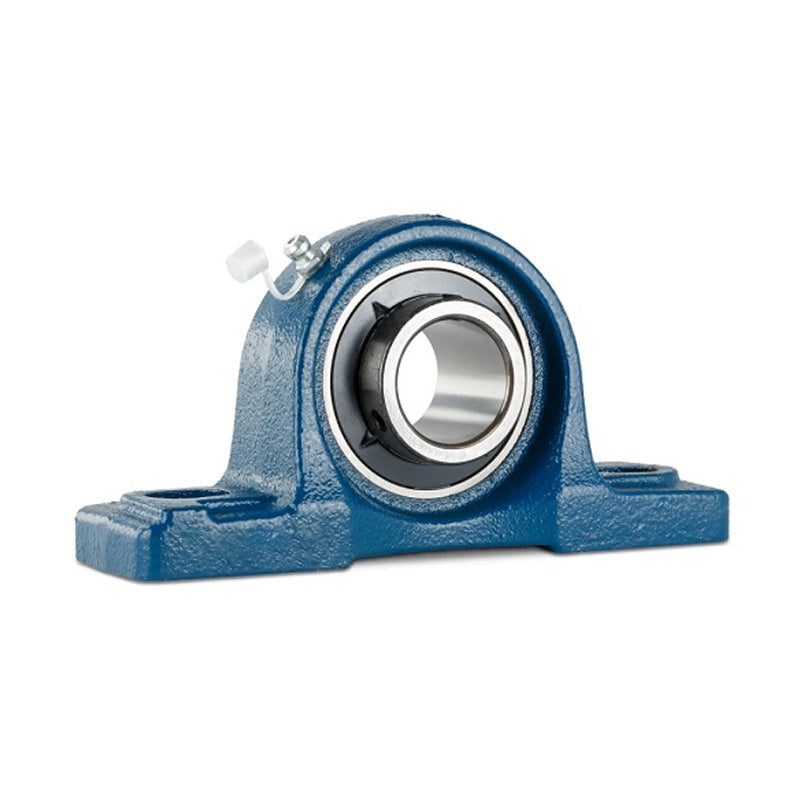

UCLP211-32 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Insert
UCLP211-32 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Insert
Regular price
€54,27
ex VAT
Regular price
Sale price
€54,27
ex VAT
In stock
Price Break
10+
€48,30
19+
€45,59
29+
€45,04
39+
€44,50
49+
€43,96
74+
€43,42
99+
€40,70
199+
€40,16
249+
€39,62
499+
€39,07
999+
€37,99
Couldn't load pickup availability
Description
Description
UCLP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UCLP
- Bolt Hole Centres:
- 171.05mm = 6.734 (6-47/64) inch
Technical
Technical
| d | 2 inch |
|---|---|
| h | 2-7/16 inch |
| a | 8-5/8 inch |
| e | 6-47/64 inch |
| b | 2-3/8 inch |
| s1 | 25/32 inch |
| s2 | 29/32 inch |
| g | 29/32 inch |
| w | 4-7/8 inch |
| B | 2.189 inch |
| n | 0.874 inch |
| Bolt size | 5/8 inch |
| Bearing no | UC211-32 |
| Housing no | LP211 |
| Weight | 3.37 kg |
