SKU: UCP.205-16

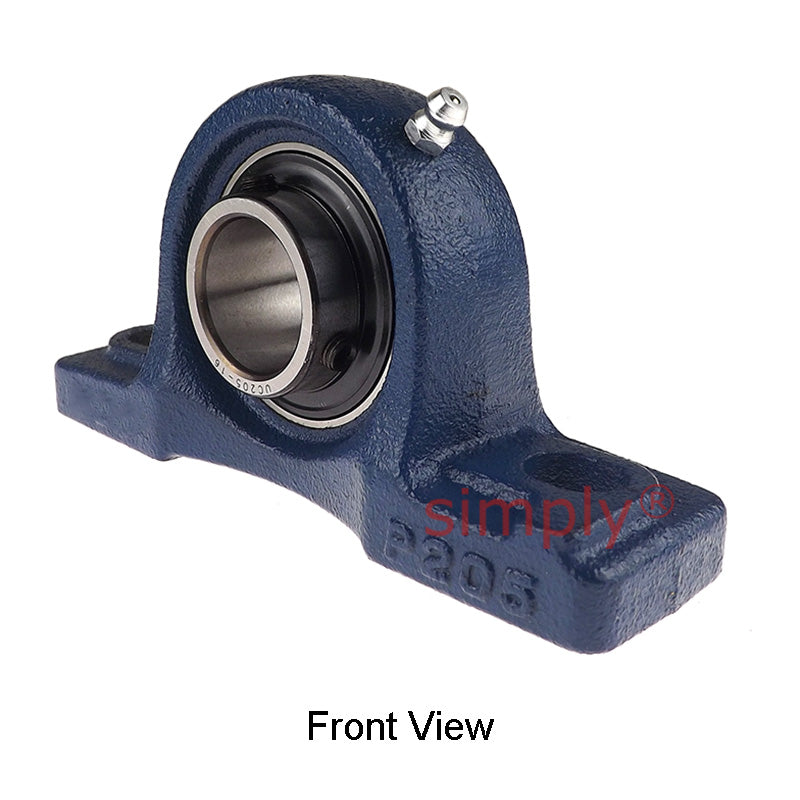

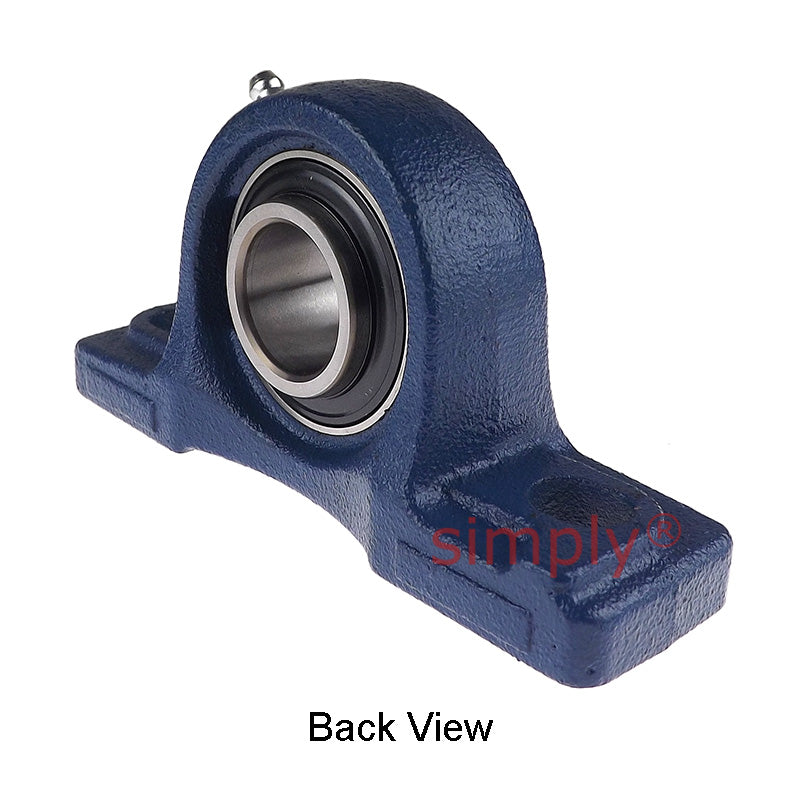

UCP205-16 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1 inch Bore Insert
UCP205-16 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1 inch Bore Insert
Regular price
€9,54
ex VAT
Regular price
Sale price
€9,54
ex VAT
Equivalent to: NP1
In stock
Price Break
3+
€7,26
4+
€6,85
9+
€6,77
19+
€6,69
49+
€6,61
99+
€6,53
499+
€6,12
999+
€6,04
1999+
€5,96
2999+
€5,88
4999+
€5,71
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: NP1
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- UCP
- Bolt Hole Centres:
- 105mm
Technical
Technical
| d | 1 inch |
|---|---|
| h | 36.5mm |
| a | 140mm |
| e | 105mm |
| b | 38mm |
| s2 | 19mm |
| s1 | 13mm |
| g | 16mm |
| w | 70mm |
| B1 | 34mm |
| n | 14.3mm |
| Bolt Size | M10 |
| Weight | 0.79 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
| Rec max speed | 6250 rpm |
