SKU: UCP.208-24

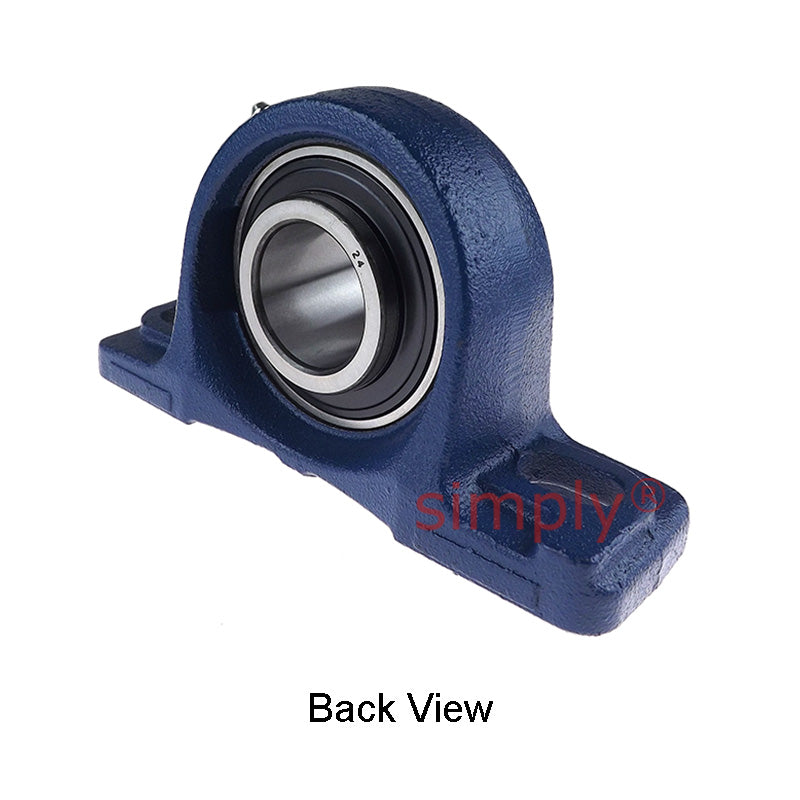

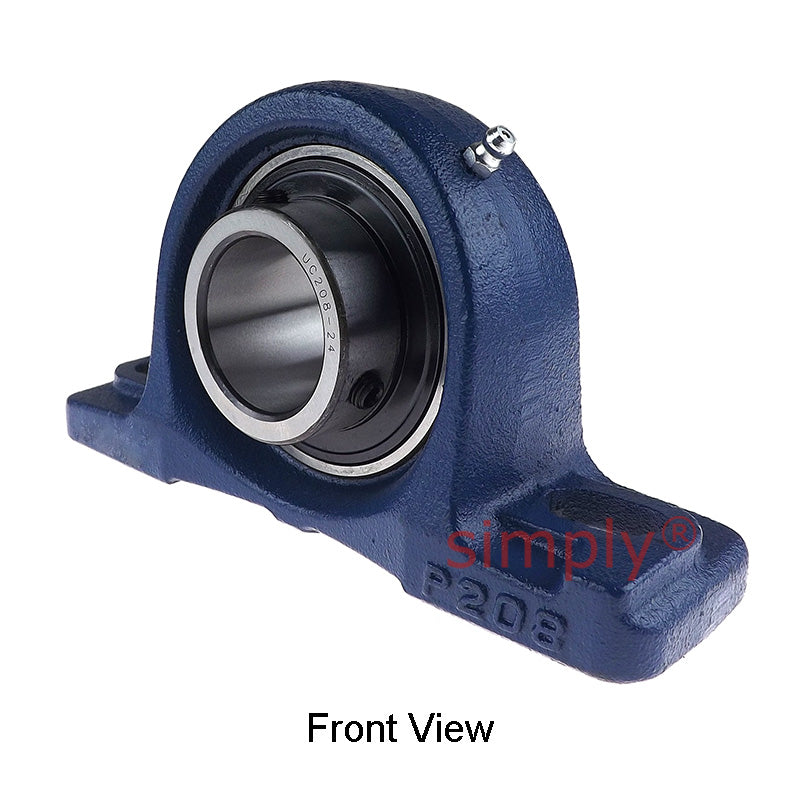

UCP208-24 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Insert
UCP208-24 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Insert
Regular price
€17,31
ex VAT
Regular price
Sale price
€17,31
ex VAT
Equivalent to: NP1.1/2
In stock
Price Break
3+
€13,18
4+
€12,44
9+
€12,29
19+
€12,14
49+
€12,00
99+
€11,85
499+
€11,11
999+
€10,96
1999+
€10,81
2999+
€10,66
4999+
€10,37
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: NP1.1/2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- UCP
- Bolt Hole Centres:
- 136mm
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| h | 49.2mm |
| a | 184mm |
| e | 136mm |
| b | 54mm |
| s2 | 21mm |
| s1 | 17mm |
| g | 19mm |
| w | 98mm |
| B1 | 49.2mm |
| n | 19mm |
| Bolt Size | M14 |
| Weight | 2 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 4000 rpm |
