SKU: UCP204-012D1-NTN

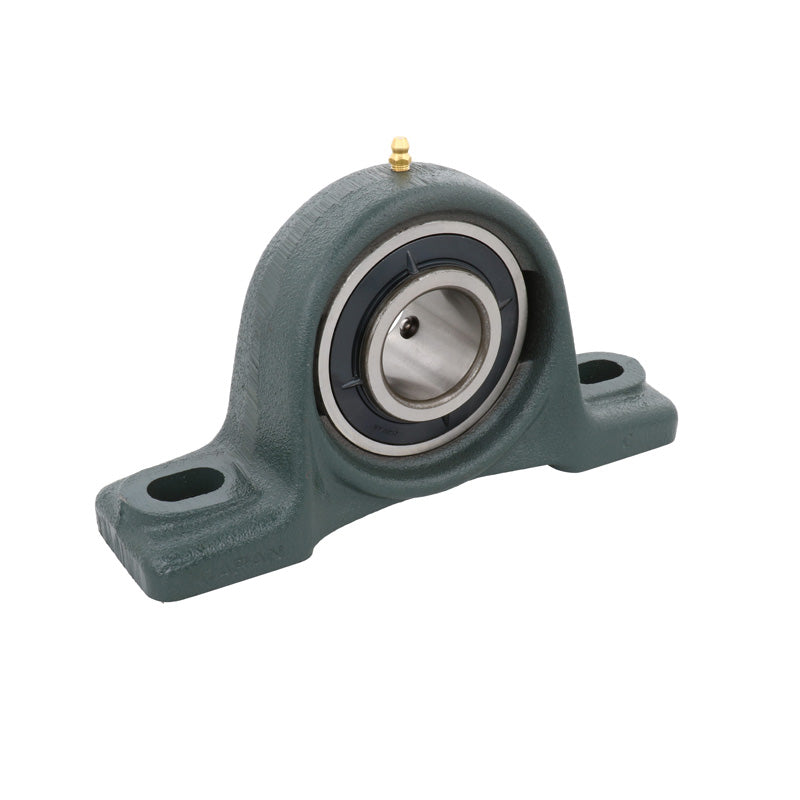

NTN UCP204-012D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3/4 inch Bore Insert - Allow 2-3 Days
NTN UCP204-012D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3/4 inch Bore Insert - Allow 2-3 Days
Regular price
€41,41
ex VAT
Regular price
Sale price
€41,41
ex VAT
In stock
Price Break
3+
€35,09
4+
€33,67
9+
€32,96
19+
€31,90
49+
€31,19
99+
€29,42
499+
€24,81
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- UCP
- Bolt Hole Centres:
- 3-3/4 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 3/4 inch |
| H | 1-5/16 inch |
| L | 5 inch |
| J | 3-3/4 inch |
| A | 1-1/2 inch |
| N | 1/2 inch |
| N<sub>1</sub> | 5/8 inch |
| H<sub>1</sub> | 9/16 inch |
| H<sub>2</sub> | 2-7/16 inch |
| L<sub>1</sub> | 1-21/32 inch |
| B | 1.2205 inch |
| S | 0.5 inch |
| Fixing bolt | 3/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 14.2 kN |
| Static load C<sub>0r</sub> | 6.65 kN |
| Fatigue load limit C<sub>u</sub> | 0.505 kN |
| --- | Unit information |
| Mass | 1.5 lbs |
