SKU: UCPA.207

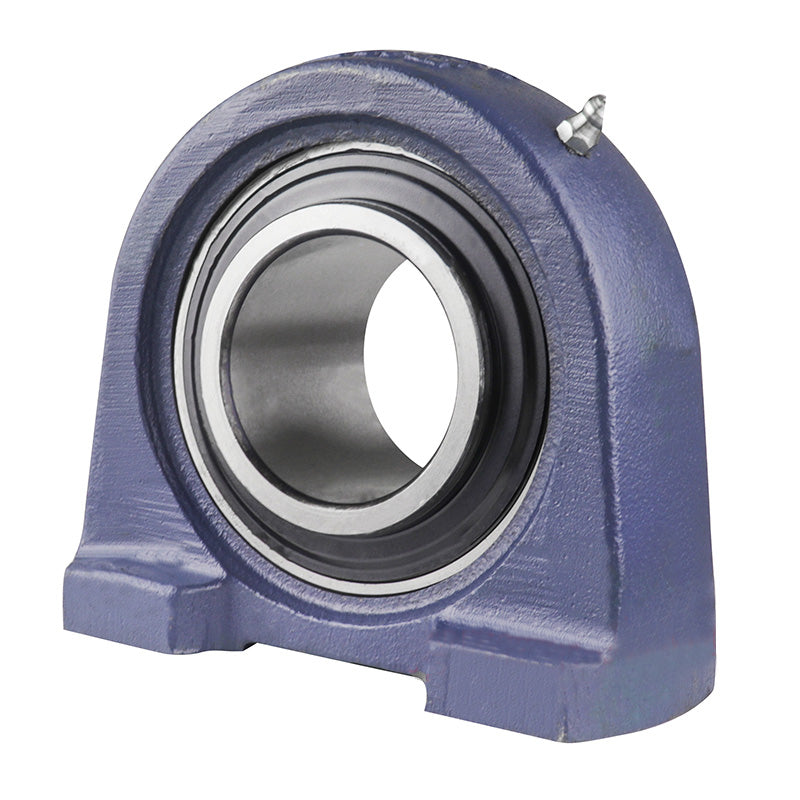

UCPA207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 35mm Bore Insert
UCPA207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 35mm Bore Insert
Regular price
€14,50
ex VAT
Regular price
Sale price
€14,50
ex VAT
Equivalent to: SNP35
In stock
Price Break
3+
€11,04
4+
€10,42
9+
€10,30
19+
€10,18
49+
€10,05
99+
€9,93
499+
€9,31
999+
€9,18
1999+
€9,06
2999+
€8,94
4999+
€8,69
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Equivalent: SNP35
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- UCPA
- Bolt Hole Centres:
- 80mm
Technical
Technical
| d | 35mm |
|---|---|
| h | 47.6mm |
| a | 110mm |
| e | 80mm |
| b | 55mm |
| s | M14 |
| g | 13mm |
| w | 95mm |
| D | 20mm |
| Bi | 42.9mm |
| n | 17.5mm |
| Bolt Size | M14 |
| Weight | 1.7 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
