SKU: UCPA.207-23

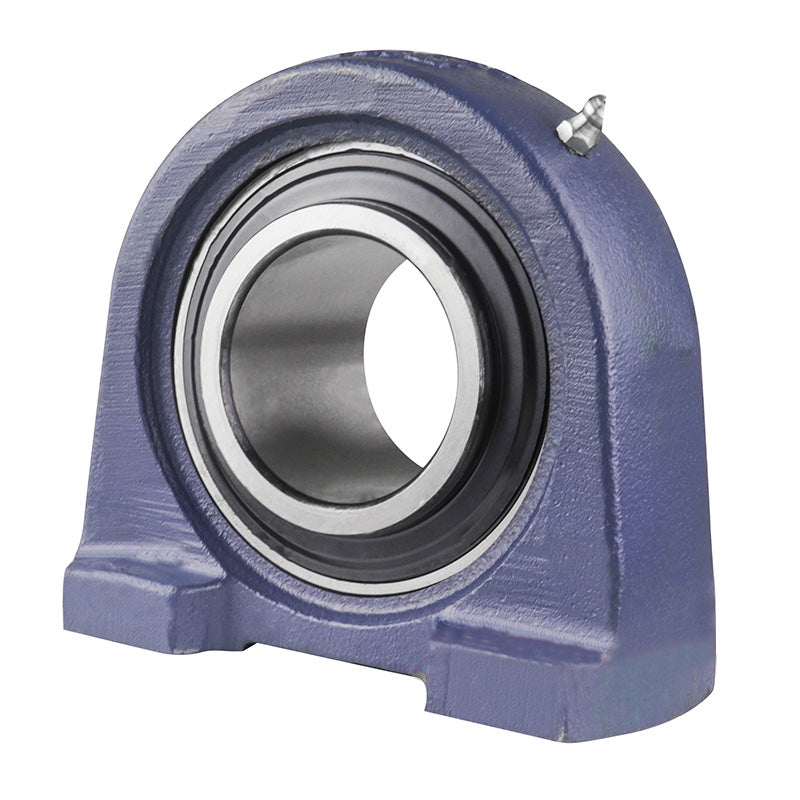

UCPA207-23 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-7/16 inch Bore Insert
UCPA207-23 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-7/16 inch Bore Insert
Regular price
€29,18
ex VAT
Regular price
Sale price
€29,18
ex VAT
In stock
Price Break
3+
€22,22
4+
€20,97
9+
€20,72
19+
€20,48
49+
€20,23
99+
€19,98
499+
€18,73
999+
€18,48
1999+
€18,23
2999+
€17,98
4999+
€17,48
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- UCPA
- Bolt Hole Centres:
- 80.17mm = 3.156 (3-5/32) inch
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| h | 1-7/8" |
| a | 4-11/32" |
| e | 3-5/32" |
| b | 2-5/32" |
| s | M14 |
| g | 1/2" |
| w | 3-3/4" |
| D | 25/32" |
| Bi | 1.6890" |
| n | 0.6890" |
| Bolt Size | M14 |
| Weight | 1.7 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
