SKU: UCPG207-SNR

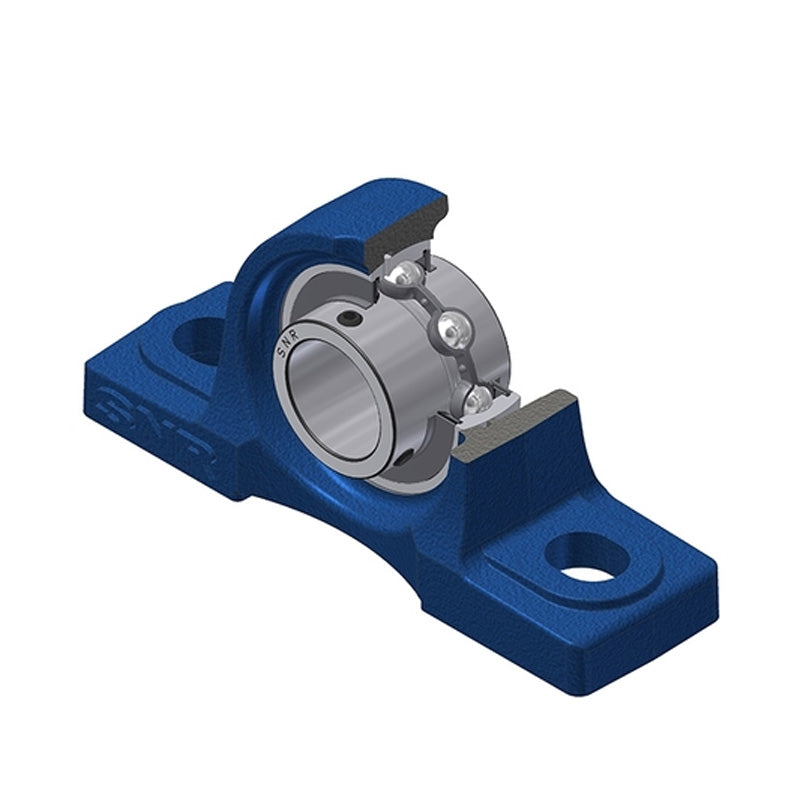

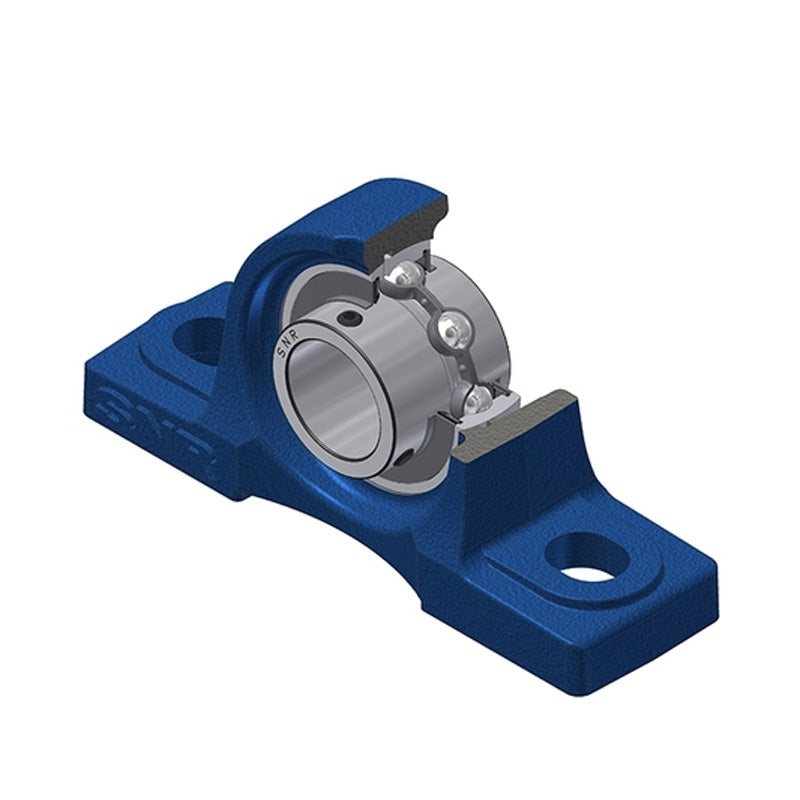

SNR UCPG207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days

SNR UCPG207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days
Regular price €46,60 ex VAT
Regular price Sale price €46,60 ex VAT
Sale Sold out

In stock

Price Break
3+ €39,48
4+ €37,89
9+ €37,09
19+ €35,89
49+ €35,09
99+ €33,10
499+ €27,92
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 35mm
A 48mm
A1 27mm
B 42.9mm
E 22mm
H 47.6mm
H1 20mm
H2 93mm
J 68mm
L 100mm
L1 35mm
N M12
S 17.5mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.57 kg
