SKU: UCPG208T20-SNR

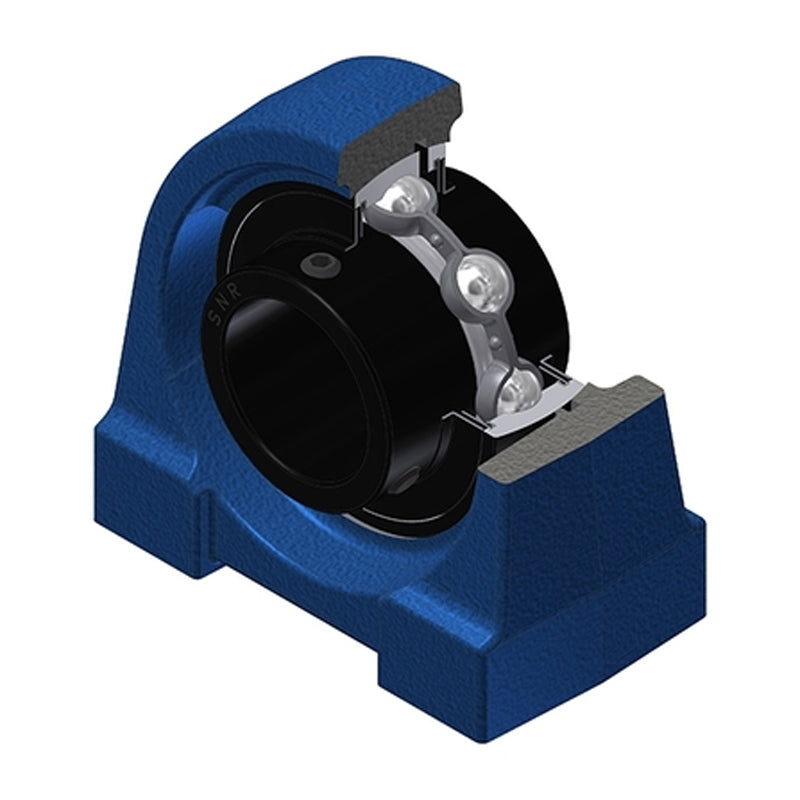

SNR UCPG208T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCPG208T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price €129,50 ex VAT
Regular price Sale price €129,50 ex VAT
Sale Sold out

In stock

Price Break
3+ €109,71
4+ €105,28
9+ €103,06
19+ €99,74
49+ €97,52
99+ €91,98
499+ €77,57
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 40mm
A 54mm
A1 30mm
B 49.2mm
E 22mm
H 49.2mm
H1 20mm
H2 98mm
J 78mm
L 110mm
L1 35mm
N M12
S 19mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.84 kg
