SKU: UCPG210-SNR

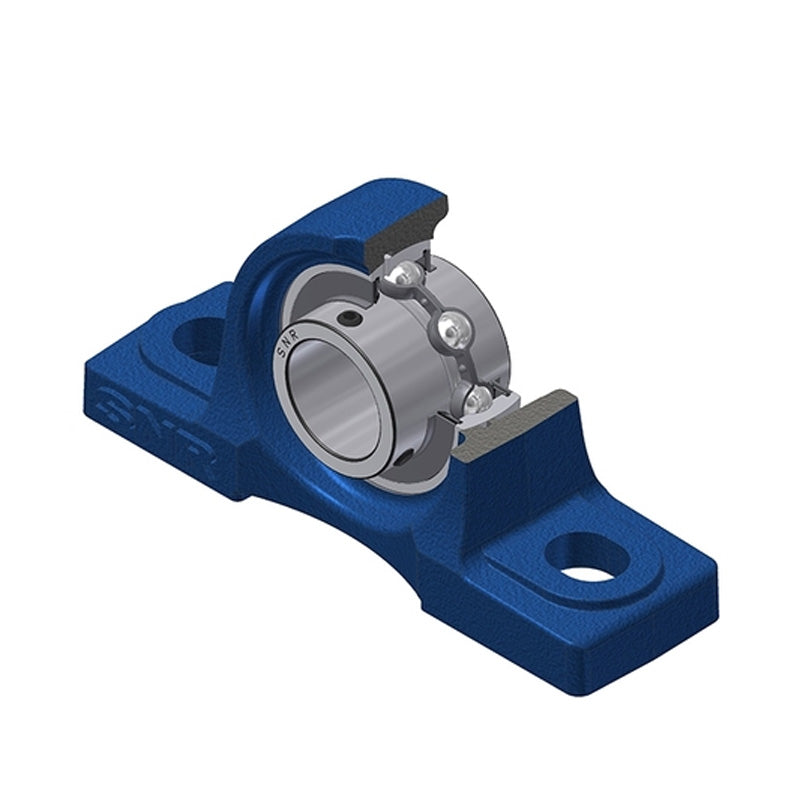

SNR UCPG210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days

SNR UCPG210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
Regular price €54,07 ex VAT
Regular price Sale price €54,07 ex VAT
Sale Sold out

In stock

Price Break
3+ €41,18
4+ €38,86
9+ €38,40
19+ €37,94
49+ €37,48
99+ €37,01
499+ €34,70
999+ €34,24
1999+ €33,78
2999+ €33,31
4999+ €32,39
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 50mm
A 60mm
A1 35mm
B 51.6mm
E 25mm
H 57.2mm
H1 21mm
H2 114mm
J 95mm
L 135mm
L1 40mm
N M16
S 19mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.8 kg
