SKU: UCPG210CO-SNR

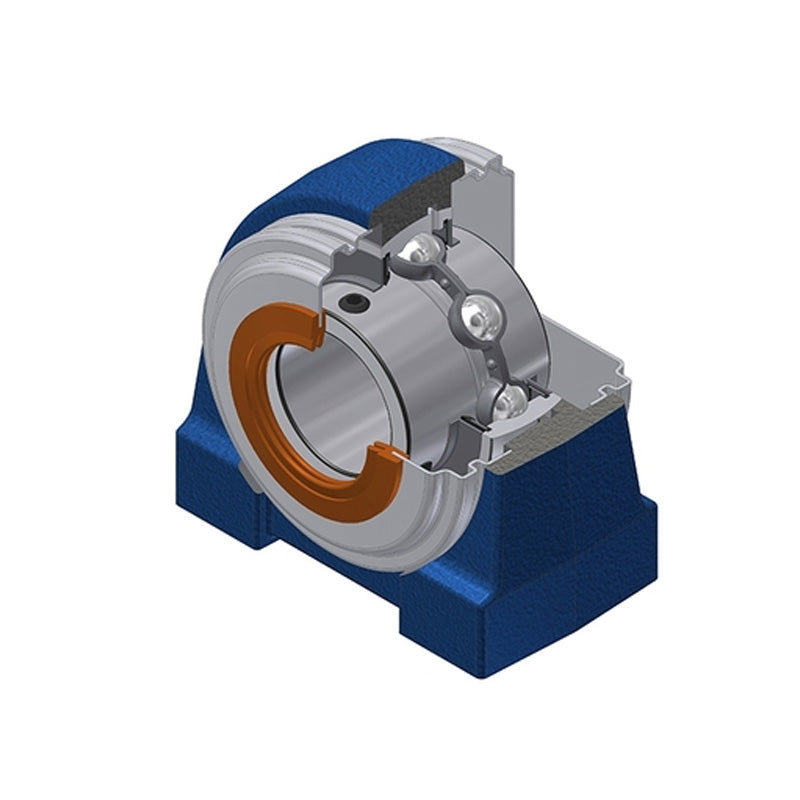

SNR UCPG210CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCPG210CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price €116,56 ex VAT
Regular price Sale price €116,56 ex VAT
Sale Sold out

In stock

Price Break
3+ €98,74
4+ €94,75
9+ €92,76
19+ €89,77
49+ €87,77
99+ €82,78
499+ €69,82
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 50mm
A 60mm
A1 35mm
B 51.6mm
E 25mm
H 57.2mm
H1 21mm
H2 114mm
J 95mm
L 135mm
L1 40mm
N M16
S 19mm
Dz 100mm
Z 50.3mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.807 kg
