SKU: UCPG212N-SNR

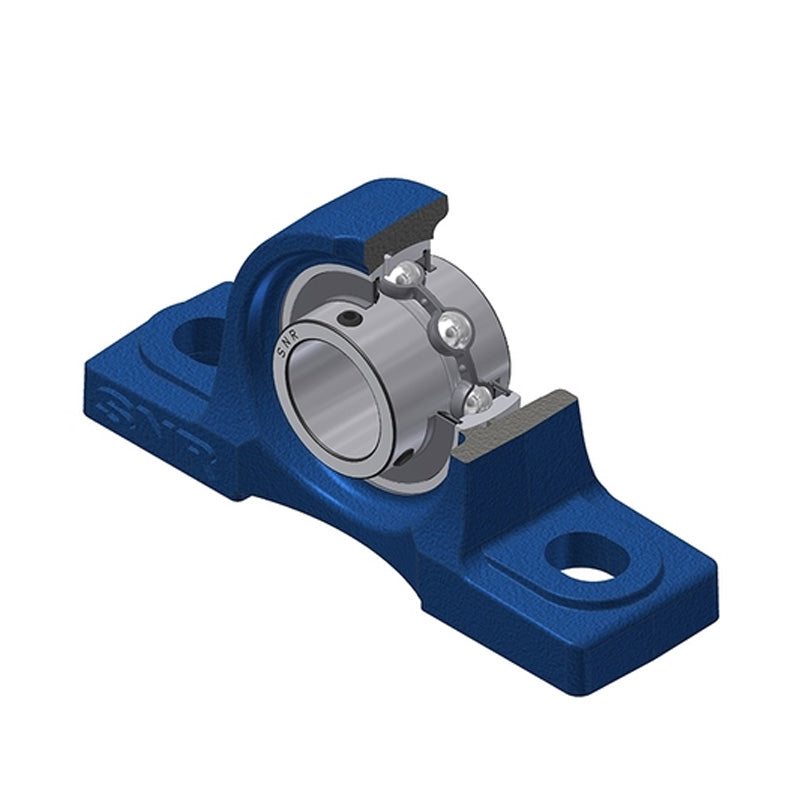

SNR UCPG212N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days

SNR UCPG212N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days
Regular price €129,55 ex VAT
Regular price Sale price €129,55 ex VAT
Sale Sold out

In stock

Price Break
3+ €109,75
4+ €105,32
9+ €103,10
19+ €99,77
49+ €97,56
99+ €92,01
499+ €77,60
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 60mm
A 70mm
A1 40mm
B 65.1mm
E 25mm
H 69.8mm
H1 25mm
H2 138mm
J 105mm
L 150mm
L1 50mm
N M16
S 25.4mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.43 kg
