SKU: UCPLE208CO-SNR

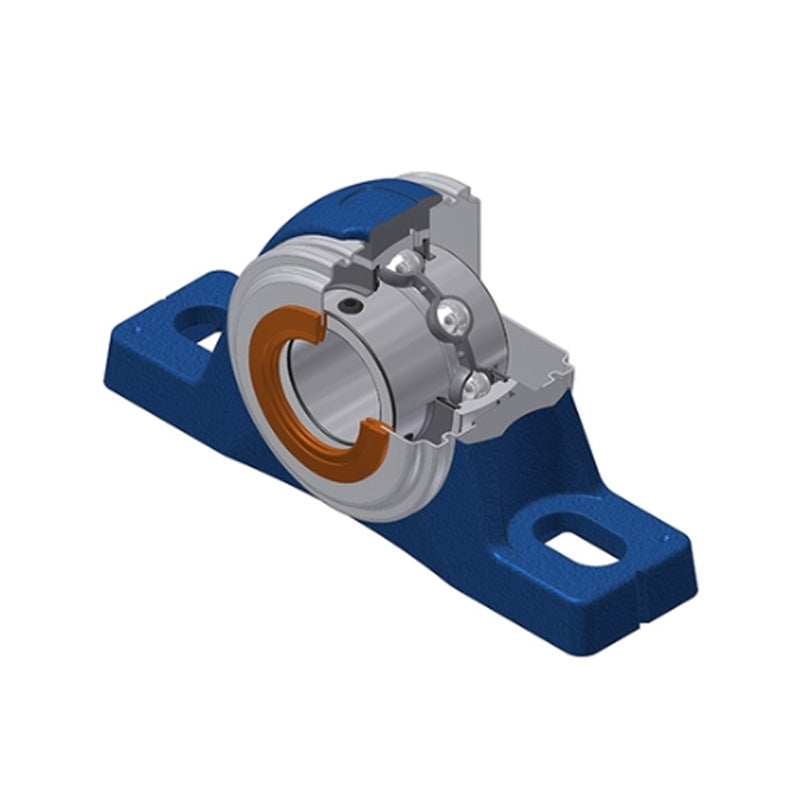

SNR UCPLE208CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCPLE208CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price €103,60 ex VAT
Regular price Sale price €103,60 ex VAT
Sale Sold out

In stock

Price Break
3+ €87,76
4+ €84,22
9+ €82,44
19+ €79,79
49+ €78,01
99+ €73,58
499+ €62,06
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 40mm
A 51mm
A1 34.5mm
B 49.2mm
H 49.2mm
H1 18.5mm
H2 98.5mm
J 137.5mm
L 180.5mm
N 14mm
N1 24.5mm
S 19mm
Dz 88mm
Z 70.3mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.884 kg
