SKU: UCPLE211-SNR

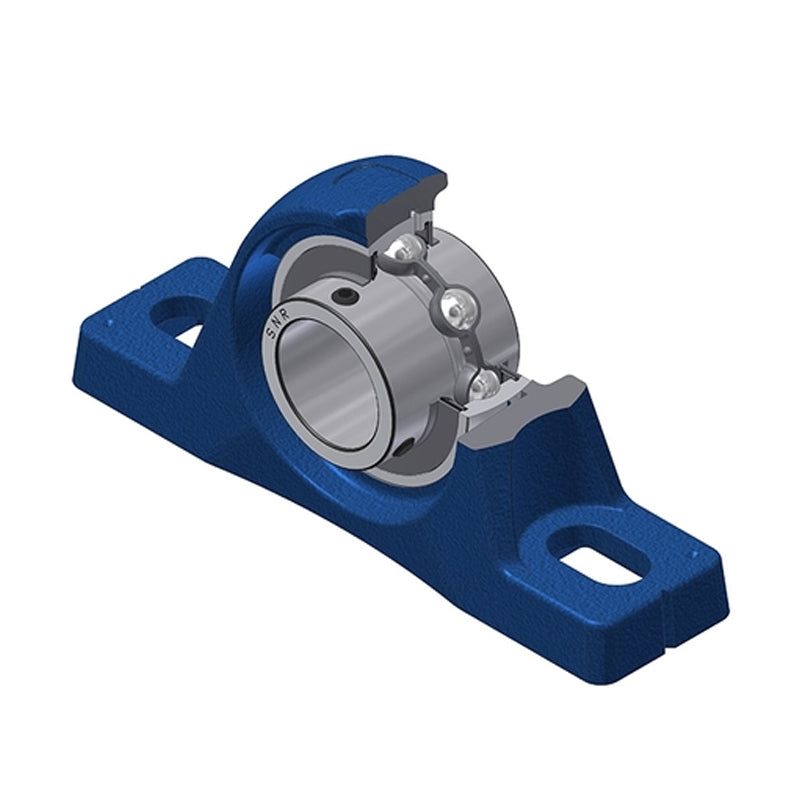

SNR UCPLE211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days

SNR UCPLE211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
Regular price €77,70 ex VAT
Regular price Sale price €77,70 ex VAT
Sale Sold out

In stock

Price Break
3+ €65,83
4+ €63,17
9+ €61,84
19+ €59,84
49+ €58,51
99+ €55,19
499+ €46,54
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 55mm
A 60mm
A1 39.5mm
B 55.6mm
H 61.3mm
H1 23.2mm
H2 128mm
J 170.5mm
L 219.5mm
N 18mm
N1 26mm
S 22.2mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.92 kg
