SKU: UCPX10-200D1-NTN

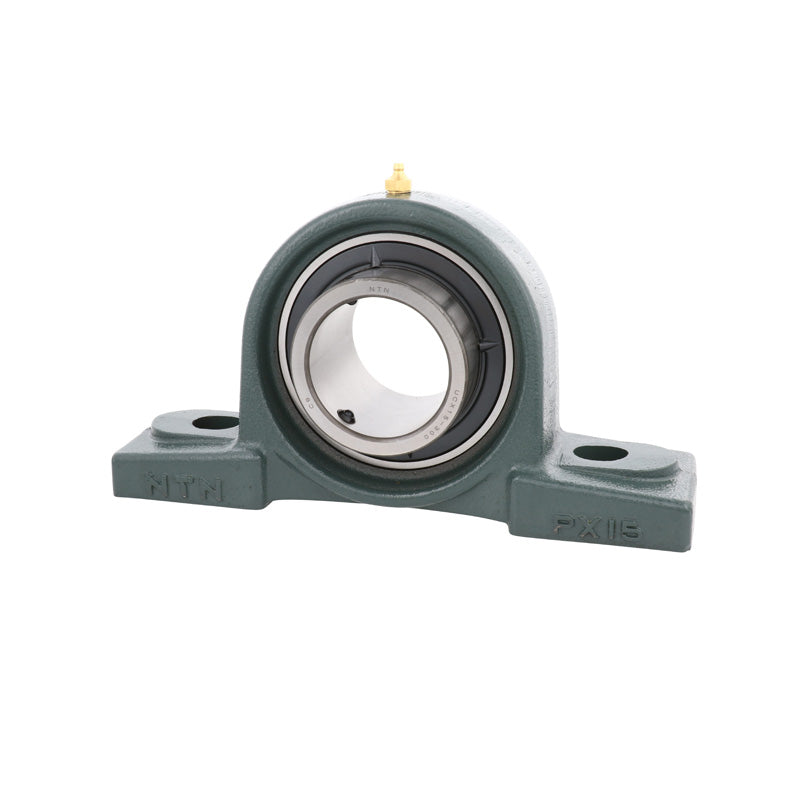

NTN UCPX10-200D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Bore Insert - Allow 2-3 Days
NTN UCPX10-200D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Bore Insert - Allow 2-3 Days
Regular price
€90,64
ex VAT
Regular price
Sale price
€90,64
ex VAT
In stock
Price Break
3+
€76,78
4+
€73,68
9+
€72,13
19+
€69,80
49+
€68,25
99+
€64,37
499+
€54,29
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50.8mm = 2 Inch
- Style:
- UCPX
- Bolt Hole Centres:
- 6-23/32 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2 inch |
| H | 2-1/2 inch |
| L | 9-1/2 inch |
| J | 6-23/32 inch |
| A | 2-7/8 inch |
| N | 25/32 inch |
| N<sub>1</sub> | 29/32 inch |
| H<sub>1</sub> | 1-1/16 inch |
| H<sub>2</sub> | 4-31/32 inch |
| L<sub>1</sub> | 2-3/4 inch |
| B | 2.189 inch |
| S | 0.874 inch |
| Fixing bolt | 5/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 48 kN |
| Static load C<sub>0r</sub> | 29.2 kN |
| Fatigue load limit C<sub>u</sub> | 2.29 kN |
| --- | Unit information |
| Mass | 9 lbs |
