SKU: UCPX15-300D1-NTN

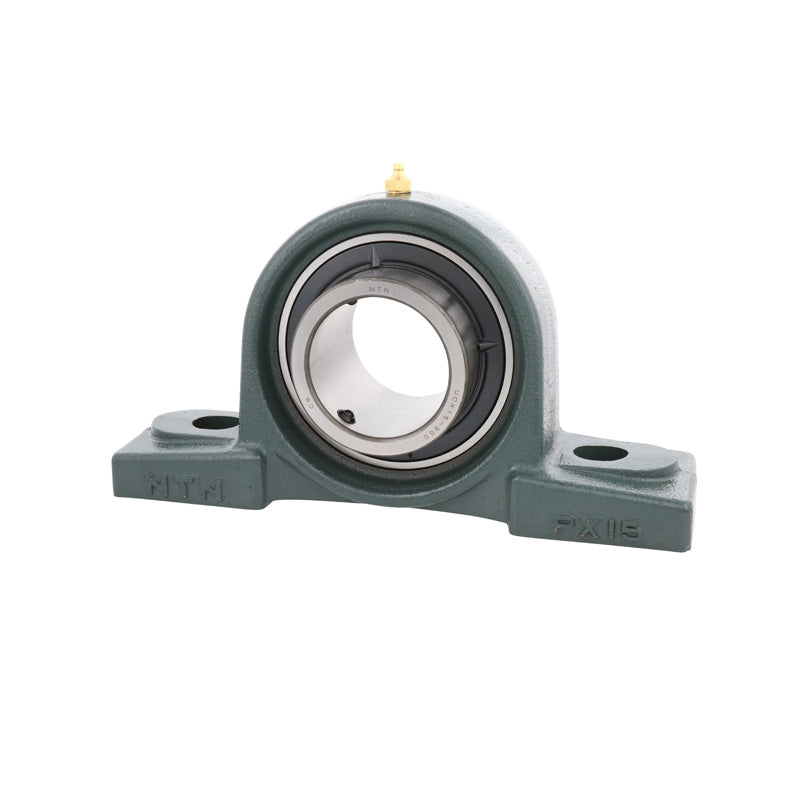

NTN UCPX15-300D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3 inch Bore Insert - Allow 2-3 Days
NTN UCPX15-300D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3 inch Bore Insert - Allow 2-3 Days
Regular price
€233,04
ex VAT
Regular price
Sale price
€233,04
ex VAT
In stock
Price Break
3+
€197,43
4+
€189,45
9+
€185,46
19+
€179,48
49+
€175,49
99+
€165,52
499+
€139,59
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 76.2mm = 3 Inch
- Style:
- UCPX
- Bolt Hole Centres:
- 9-1/32 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 3 inch |
| H | 3-1/2 inch |
| L | 13 inch |
| J | 9-1/32 inch |
| A | 3-1/2 inch |
| N | 1-1/16 inch |
| N<sub>1</sub> | 1-3/16 inch |
| H<sub>1</sub> | 1-3/8 inch |
| H<sub>2</sub> | 6-7/8 inch |
| L<sub>1</sub> | 3-3/4 inch |
| B | 3.252 inch |
| S | 1.311 inch |
| Fixing bolt | 7/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 80.5 kN |
| Static load C<sub>0r</sub> | 53 kN |
| Fatigue load limit C<sub>u</sub> | 3.95 kN |
| --- | Unit information |
| Mass | 22 lbs |
